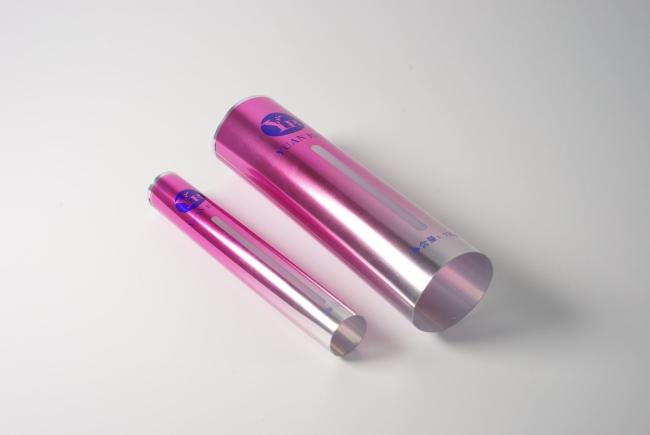

Recyclable PBL Tube Material Laminates Mono material
Price:
USD
MOQ:
1000KG
Delivery Time:
25~30work days
Brand:
Xuntang
Product Description
Advantages Of Mono-material PBL One-time Blown Tube Laminate(One-formed Tube Thick Film)
Recyclable Mono-Material PBL Tube Laminates
- One-time Blown Tube Laminate has good penetration resistance and corrosion resistance,better performance in tube printing and tube making
- Single material ＞95% can be recycled and reused
- Compared with the same extruded composite PBL tube laminate, the one-time blown tube has a significant improvement in water resistance and oxygen resistance
- One-time blown tube laminate can replace ABL tube laminate of the same thickness
Test Data Comparison Table as below:
| Test Items | Unit | PBL-EVOH
(A) |
PBL-EVOH
(B) |
PBL-60%HD
One-formed |
PBL-60%HD
One-formed |
PBL-40%HD
One-formed |
ABL-AL (C) |
||
| 1 | Average Thickness | μm | 400.0 | 310.0 | 350.0 | 275.0 | 250.0 | 255.0 | |
| 2 | MD | Yield Strength | MPa | 15.1 | 15.6 | 21.7 | 21.5 | 18.4 | 21.2 |
| Secant Modulus | MPa | 411 | 459 | 651 | 681 | 621 | 801 | ||
| Tensile Strength | MPa | 21.0 | 21.0 | 22.5 | 25.9 | 29.2 | 24.8 | ||
| Breaking Elongation | % | 710 | 540 | 260 | 780 | 770 | 600 | ||
| 3 | TD | Yield Strength | MPa | 16.4 | 16.9 | 21.7 | 21.1 | 18.3 | 21.9 |
| Secant Modulus | MPa | 473 | 510 | 651 | 669 | 624 | 823 | ||
| Tensile Strength | MPa | 19.1 | 17.0 | 22.5 | 26.2 | 26.2 | 21.9 | ||
| Breaking Elongation | % | 660 | 380 | 510 | 810 | 730 | 640 | ||
| 4 | Puncture Resistance | N | 11.3 | 9.0 | 11.4 | 9.3 | 8.6 | 8.6 | |
| 5 | Glossiness(45º) | — | 40.2 | 52.4 | 40.6 | 41.5 | 41.3 | 41.2 | |
| 6 | OTR(23℃,0%RH) | cm3/m2.day | 0.7 | 0.6 | 0.22 | 0.28 | 0.30 | 0.1 | |
| 7 | WVTR(37.8℃,90%RH) | g/m2.day | 0.8 | 1.1 | 0.44 | 0.54 | 0.64 | 0.2 | |
Conclusions:
- The MD and TD yield strength of the once-formed tube is 25-30% greater than the extruded laminate PBL tube (A,B), making it more rigid.
- 60% HD one-formed tube and aluminum-plastic ABL tube(C) have the same yield strength, so the mechanical properties and hardness are equivalent under the same thickness.
- Compared with the extruded laminate PBL tube(A,B) of the same thickness, the one-formed tube has greatly improved water-blocking and oxygen-blocking performance.
