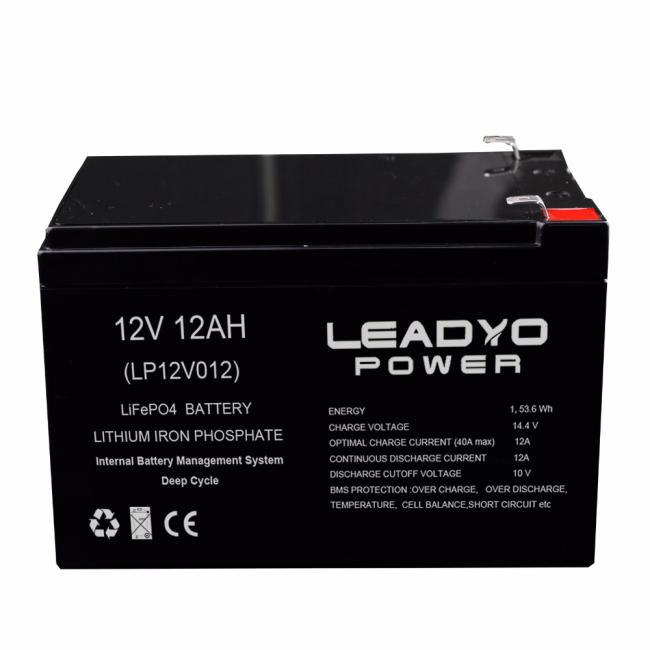

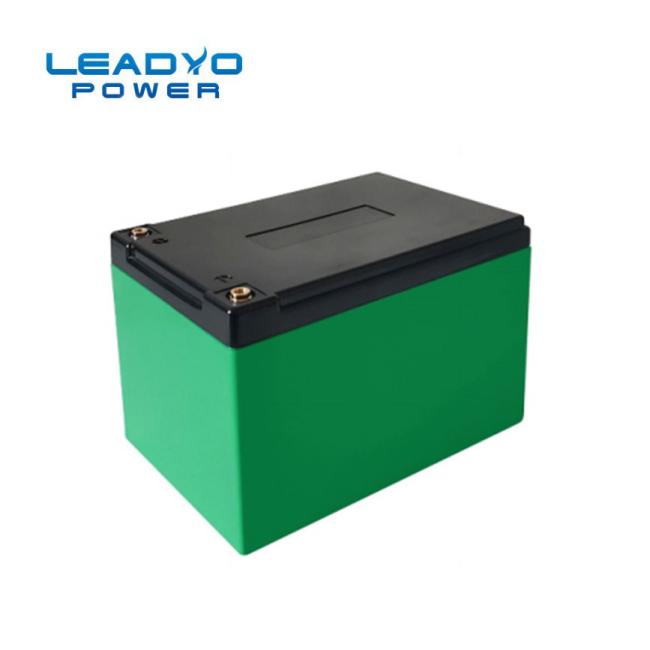

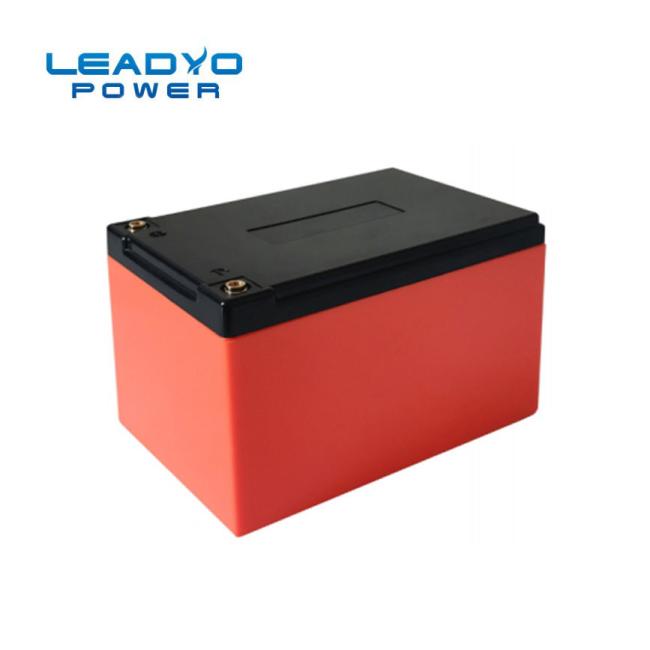

Rechargeable Lifepo4 Deep Cycle Batteries , 12V 10ah 12ah Lithium Ion Batteries
rechargeable lifepo4 deep cycle batteries 12V 10ah lithium ion batteries replace 12 volts lead acid battery
This 12 volt lithium battery packs with Lithium Iron Phosphate (LiFePO4) technology this battery has twice the power, half the weight, and lasts 4 times longer than a sealed lead acid battery – providing exceptional lifetime value. The battery for fishing electronics, outdoor use, and SLA replacement. Replaces 12.8V battery and many more. LiFePO4 charger recommended.
Application:
FISH FINDERS, FLASHERS, & BOATING ELECTRONICS
ICE FISHING
LIFEPO4 REPLACEMENT FOR SLA 12V
ELECTRIC VEHICLE STARTER BATTERY
INDUSTRIAL BATTERIES
SCOOTER BATTERIES
SOLAR LIGHTING
ROBOTICS
HIKING
CAMPING
REMOTE POWER
OUTDOOR ADVENTURES
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | F2 | |
| Nominal Capacity | 10Ah | Weight | 1.5kg | |
| Nominal Energy | 128Wh | Case Dimension(L*W*H) | 151*99*94mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @2A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 10A | Max Charge Current | 10A | |
| Peak Current | 20A | Recommended Charge Current | 2A - 5A | |
| Discharge pulse current | 30±5A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
