10KW Motor Lithium Ion Golf Cart Batteries 36V 48V 50Ah 100Ah
36V 48V 50Ah 100Ah battery 10KW Motor lithium ion golf cart batteries
Features of lithium ion golf cart batteries
Specs of lithium ion golf cart batteries
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 51.2V | Terminal Type | M8 | |
| Nominal Capacity | 50Ah | Weight | 21kg | |
| Nominal Energy | 2560Wh | Case Dimension(L*W*H) | 520*230*220MM | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @10A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | 12PCS | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 50A | |
| Peak Current | 300A | Recommended Charge Current | 10A - 25A | |
| Discharge pulse current | 500±50A (31±10ms) | End of Charge voltage | 57.6V±0.2V | |
| BMS Low Voltge Cut-off | 40V | End of discharge voltage | 40V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||

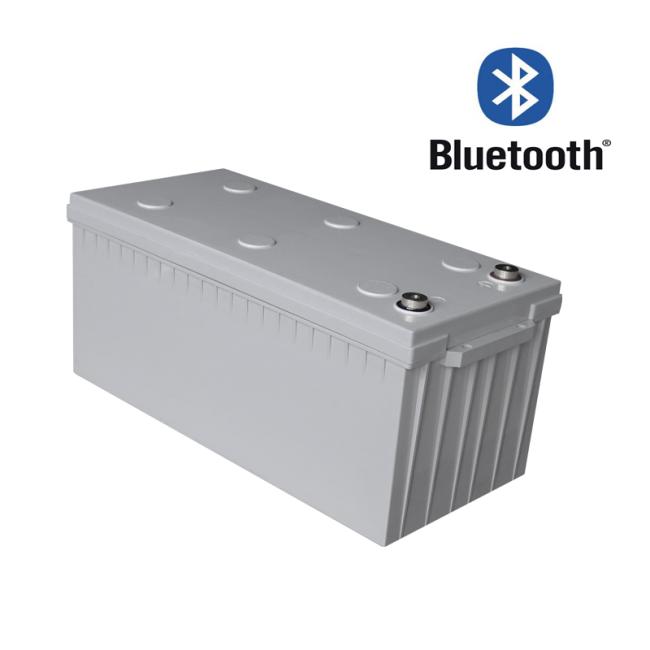

Pictures of lithium ion golf cart batteries

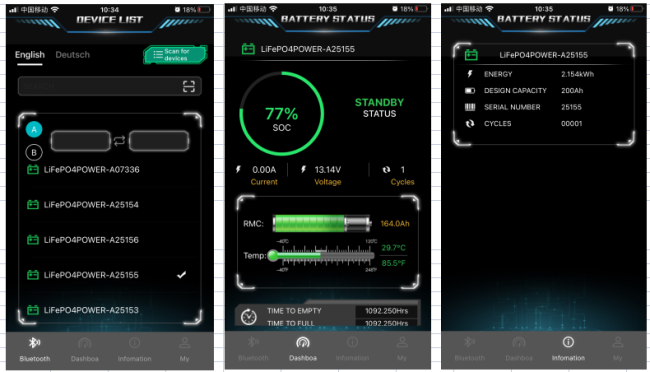

Bluetooth APP of lithium ion golf cart batteries
FAQ of lithium ion golf cart batteries
Q: Have you have other models for the golf carts
A: Yes, sure, we also have 36V 48V 60V 72V 30Ah 50Ah 100Ah 150Ah 200Ah sizes.and we also can customzied according to your requirements.
Q: Can you provide battery charger together?
A: Yes,we will recommend charger for each battery.
Q: Do you have your own brand? can i sell your brand directly?
A: Yes,sure,you can sell our brand, we also can provide OEM services for you.
Q:Are you factory?
A: Yes sure, we are factory, and we enaged in lithiium battery pack production over 10years.
Q: What kind of certificates do you have?
A: We can provide CE,IEC62133,MSDS,UN38.3 etc....
