Energy Power BMS LiFePO4 Golf Cart Battery Deep Cycle 48V 200Ah
Price:
Negotiable
MOQ:
1pcs
Delivery Time:
15-45 Days
Brand:
LEADYO
Product Description

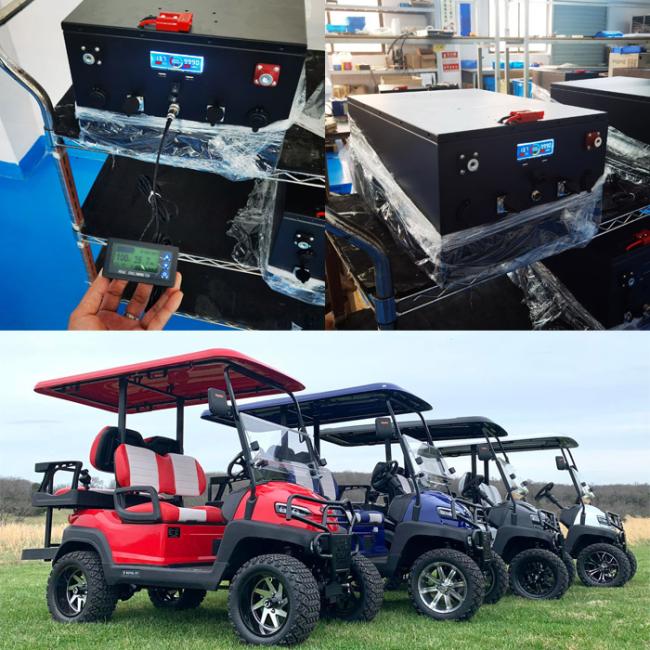

48V 200Ah LiFePO4 Golf Cart Battery energy power deep cycle battery
The LifePo4 battery a safer, more lightweight alternative to lead-acid in your golf carts. the LiFePo4 cylce life over 5000times .It maintains a consistent power and is equipped and a built-in battery management system (BMS).We can provide 36V 48V and 72V Lithium LiFePo4 batteries to you what can meet many different golf carts.we have some standard sizes, and also can customized size according to your requirements
The conitinuous current 200A (Adjust)
Built in Smart BMS
Cold rolled steel 550*305*260mm (can customized)
Weight :83kg
plug in golf carts directly
Can With Bluetooth or LCD display monitoring the SOC, or can with RS485/CAN communication with your Golf Carts
Can in parallel to 2000Ah
Datasheet of 48V 200Ah LiFePO4 Golf Cart Battery energy power deep cycle battery
|
ELECTRICAL SPECIFICATIONS |
MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 51.2V | Terminal Type | M8 | |
| Nominal Capacity | 200Ah | Weight | 83kg | |
| Nominal Energy | 10240Wh | Case Dimension(L*W*H) | 750*305*260mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | Steel | |
| Capacity | @40A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 200A | Max Charge Current | 200A | |
| Peak Current | 500A | Recommended Charge Current | 40A - 100A | |
| Discharge pulse current | 700±50A (31±10ms) | End of Charge voltage | 57.6V±0.2V | |
| BMS Low Voltge Cut-off | 40V | End of discharge voltage | 40V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v/ cell | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
1. Are you factory or trade company?
We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products.
2. Do you have other batteries can use golf carts?
Yes sure, We have 12V-48V 50Ah-400Ah can use in Golf carts
3. How to get a quote?
Please contact with us sales5@leadyo-battery.com
4. When you delivery order?
Normally 7-15 days for samples order , 20-30days for bulk order.
5. Do you accept OEM?
2. Do you have other batteries can use golf carts?
Yes sure, We have 12V-48V 50Ah-400Ah can use in Golf carts
3. How to get a quote?
Please contact with us sales5@leadyo-battery.com
4. When you delivery order?
Normally 7-15 days for samples order , 20-30days for bulk order.
5. Do you accept OEM?
Yes ,OEM and ODM both available
