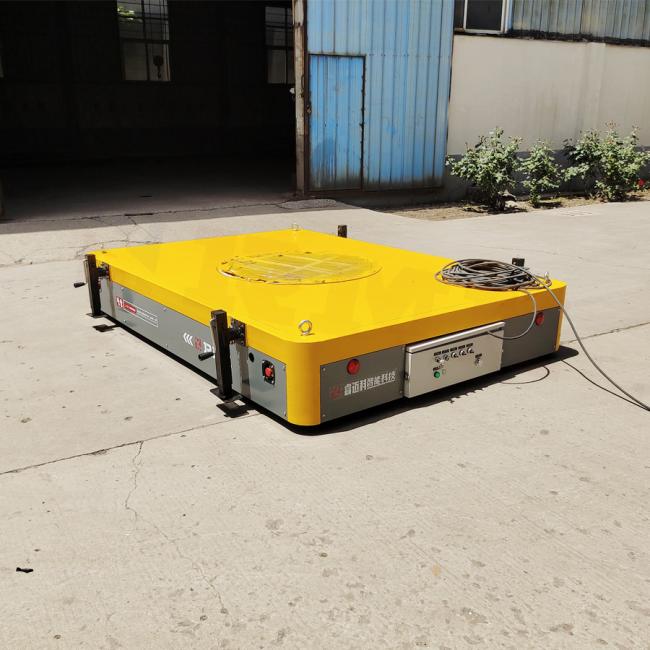

10 Tons Wireless Electric Transfer Trolley , Stepless Speed Die Transfer Car
10 Tons Wireless Electric Transfer Trolley , Stepless Speed Die Transfer Car
It is used in the fields of automobile production, ship manufacturing, die stamping, steel allocation, transportation and assembly of large machinery and equipment. It is used for cross transportation in multiple workshops. It is more convenient than rail flat car and can greatly increase work efficiency. The frame is made of steel plate, the electric flat car table can be laid with anti-skid rubber pad, and the running speed can be adjusted steplessly. Operating system: onboard handle + wireless remote control, table size can be customized according to customer requirements. The heavy trackless electric flat car can turn flexibly and has forward, backward, left and right buttons, speed regulation button, emergency stop button, abnormal light indication, power on light indication, authority key and other control buttons. With the advantages of simple operation, smooth turning and easy maintenance, trackless electric flat car will win the favor of many enterprises and manufacturers.
10 Tons Wireless Electric Transfer Trolley , Stepless Speed Die Transfer Car
| Technical parameters for electric transfer carts | |||||||||
| 1 | rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
| 2 | impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
| 3 | structure of frame | steel plates welded, beam structure | |||||||
| 4 | max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
| 5 | ground requirement | cement floor | steel plate ground | ||||||
| 6 | table size(mm) | 3000×2000 | 3600×2000 | 4000×2200 | 4500×2200 | 5000×2200 | 5500×2300 |
6000× 2300 |
10000× 3000 |
| 7 | height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
| 8 | ground clearance(mm) | 50 | 75 | ||||||
| 9 | wheels base(mm) | 1500 | 1700 | 1800 | 2000 | ||||
| 10 | axles distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 | 10000 |
| 11 | turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
| 12 | turning type | turning while driving with no stop | |||||||
| 13 | control method for turning | control button | |||||||
| 14 | turning structure | mechanical | |||||||
| 15 | motor power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 | 15 |
| 16 | wheel diameter(mm) | Ф300 x 4 | Ф350 x 4 | Ф400 x 4 | Ф400 x 6 | Ф500 x 6 | Ф600 x 8 | ||
| 21 | battery model | D-250 x 24 | D-33 x 24 | D-400 x 24 | D-440 x 24 | D-250 x 36 | D-330 x 36 | D-440 x 36 | D-600 x 36 |
| 22 | battery maintenance | free of maintenance | |||||||
| 23 | charger's installation | installed on cart | split-type | ||||||
| 24 | charger function | automatic charging | |||||||
| 25 | radar control | 3-0.3m, automatic stop for obstacles | |||||||
| 26 | warning equipment | sound and light | |||||||
| 27 | other functions | turning light, night light and power display | |||||||
