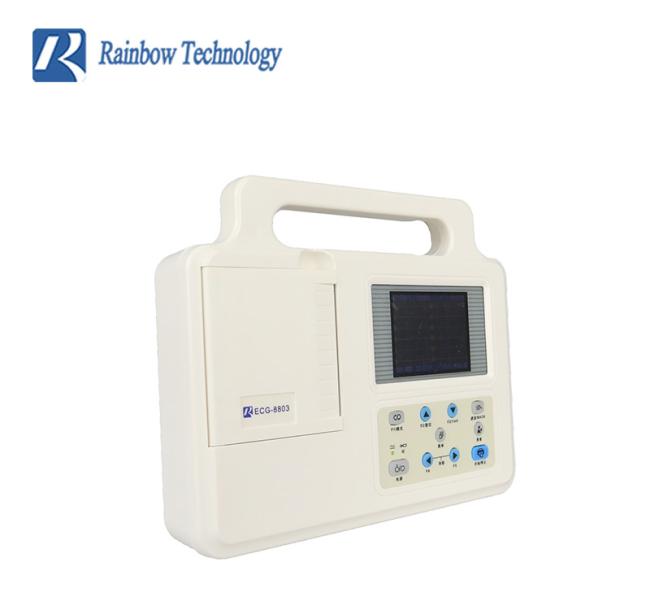

3.5 Inch Medical ECG Machine
Pathological Analysis Equipment 3.5 inch Wide-screen EKG Electrocardiogram Portable ECG Machine 8803
Function Features of ECG 8803
| Full screen display of 12 channel ECG waveforms |
| 3.5 inch wide-screen |
| Digital single channel automatic measurement, analysis and diagnosis with report printing |
| Multiple operation modes: manual, automatic, rhythm, physical examination |
| No need to install. Best choice for first aid and shift |
| Light-weight,exquisite and easy to carry |
| Built-in rechargeable li-ion battery, 8-hour battery life |
Standard configuration:
ECG8201 Electrocardiograph mainframe
ECG suction bulb – one pair
12-channel ECG lead
AC adaptor
Grounding wire
Body/limb clamp – one set
Power line
Thermal print paper- two rolls
Print paper scroll
Operation manual
Parameters of ECG Machine
Operation mode:Manual/Auto/storage
Standard 12 leads:real-time ECG waveforms
Measure mode:Simultaneously acquisition of 12 lead,
Measure frequency:12Bit/1000Hz(1ms)
AC filter:50Hz/60Hz
EMG filter:25Hz/45Hz
Drift filter:Auto adaption
CMRR:≥95dB
Input circuit:Floating with defibrillation protection
Frequent response:0.05-160Hz(-3db)
Sensitivity:Auto/2.5/5/10/20/40(mm/mv)
Printing:High resolution thermal printer
Communication interface:Standard USB/RS232
Safety standard:IEC I CF(GB9706.1-2007)
Keypad panel:can input clinic information such as patient names
Display:320*240 Graphical LCD
Internal power supply:built-in rechargeable li-ion battery for 8-hour battery life
External power supply:AC 75V-265V Auto adjustment for wide input range
We are based in Hunan, China, start from 1997,sell to Domestic Market(50.00%),Southeast Asia(15.00%),Africa(10.00%),Central America(10.00%),Mid East(8.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Multi parameter Patient Monitor,ECG Machine,Infusion Pump,Syringe Pump,Nutritional Pump
4. why should you buy from us not from other suppliers?
Hunan Rainbow Technology Co,Ltd is a professional manufacturer and wholesaler in monitor with 19-year experience. In order to meets the marketing demand, our company cooperate with the America RMS Company to release a serials of PM-9000 parameters monitor.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
