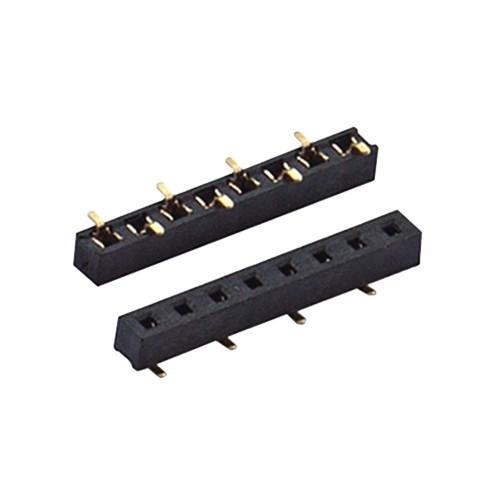

straight customized 40p 1.27/2.0/2.54mm pitch single row smt female header connector

Definition of female header

Female header is widely used in vehicle-mounted monitoring, instrumentation, Internet of things, new energy vehicles, LED display field, POS machine and scanner, lighting industry, security industry, electronic toys, household appliances, etc., providing the most reliable connection board to board and wire to board.

Female Header is a type of connector.
This connector is widely used in electronic, electrical, instrument in the PCB circuit board, its role is in the circuit is blocked or isolated between the circuit, play a bridge function, take up the task of current or signal transmission.
Usually used with row pin matching, forming a board-to-board connection; Or matching with the electronic wiring harness terminal, forming a board-to-wire connection; Can also be used independently for board to board connection.
Because the specifications required by different products are not the same, there are also a variety of specifications.

Specifications

Spacing can be roughly divided into: 0.8mm, 1.00mm, 1.27mm, 1.5mm, 2.00mm, 2.2mm, 2.54mm, 3.0mm, 3.5mm, 3.08mm, 5.08mm
The number of rows can be roughly divided into: single row, double row, three rows, four rows, etc;
The height can be roughly: H2.0, H2.2, H2.8, H3.4, H3.5 H4.3, H4.6, H4.9, H5.0, H5.7, H6.35, H7.1, H7.2, H8.5, H10.0, H11.0, etc.

High temperature resistant insulating plastic (UL94V-0) material: PBT(only meet the wave soldering process).
High temperature resistant insulating plastic (UL94V-0) material: PA6T, PA9T, LCP(can meet the wave soldering, reflow welding two kinds of process).
The color of insulating plastic can be divided into black, white, blue, natural color and so on.
Hardware contact terminal material: brass (C2680) or phosphor copper (C5191), leather copper.
Hardware contact terminal surface treatment: nickel plating first in gold or silver plating, bright tin plating, wuxi plating, semi-gold tin plating, etc.
