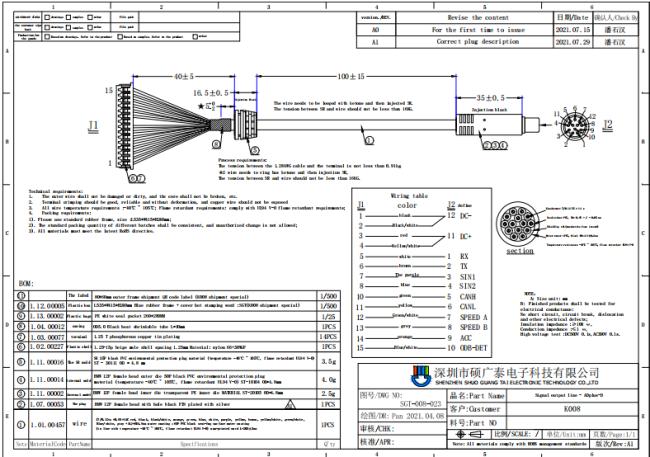

1.25 terminal TO 10P BMW connector black pcb molded wire harness custom cable

• Which provides a method of cable connector assembly steps of this method include, will at least one terminal inserting an insulating shell, among them, the insulation shell is equipped with a ontology, the ontology front end is equipped with a connector, then end is equipped with a platform, the terminal has a main body, front end is equipped with a contact part of the subject, the backend is equipped with a connection, in the assembly of the first step, A metal shell coating insulation shell, among them, the metal shell including a top, a bottom and two side, at least one wire and terminal connections department, the wire by an insulating outer bag after, then a layer of epoxy resin coating on the platform of the insulation shell and the joint of the wire and terminal connection department, to complete the cable connector assembly procedure in the process of the mold, In the second step of the assembly, an insulated housing is used to cover the pre-cast cable connector completed in the first step.
  The advantages of the method lie in that the components are simple, the assembly is simple, the manufacturing and assembly cost is reduced, and it can effectively butt with the general series busbar connector.
• The general series busbar connector specification 0.9 version of a general series busbar connector and the docking of the combined device of the wire plug device, wherein, the general series busbar connector 1 comprises an insulating shell 2 and a metal shell 3, the metal shell 3 provides shielding protection to the insulating shell 2; When the universal serial bus connector 1 and docking of cable connector joint, 5 line plug device 5 end 4 interpolation in the universal serial bus connector 1 between 2 and 3 metal shell, the insulation of the shell and the universal serial bus connector 1 terminal 9 contact with the terminal 10 5 phase line plug in order to realize the electrical connections, At least one spring 6 is provided on connector 1 of the general series bus bar to clamp the opening part 7 of connector 5 end part 4 to achieve stable joint. However, the combination of general series busbar connector and butt cable connector of the above combined device is not stable.
