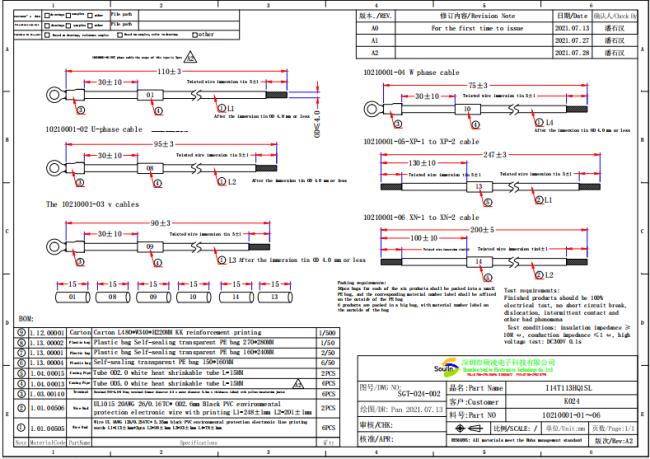

Complete set of cables, single wire inside the machine black pcb internal wire harness custom cable

• Which provides a method of cable connector assembly steps of this method include, will at least one terminal inserting an insulating shell, among them, the insulation shell is equipped with a ontology, the ontology front end is equipped with a connector, then end is equipped with a platform, the terminal has a main body, front end is equipped with a contact part of the subject, the backend is equipped with a connection, in the assembly of the first step, A metal shell coating insulation shell, among them, the metal shell including a top, a bottom and two side, at least one wire and terminal connections department, the wire by an insulating outer bag after, then a layer of epoxy resin coating on the platform of the insulation shell and the joint of the wire and terminal connection department, to complete the cable connector assembly procedure in the process of the mold, In the second step of the assembly, an insulated housing is used to cover the pre-cast cable connector completed in the first step.
  The advantages of the method lie in that the components are simple, the assembly is simple, the manufacturing and assembly cost is reduced, and it can effectively butt with the general series busbar connector.
• The invention relates to a method for assembling a cable connector, which can be used for docking with a Universal Serial Bus connector.
  Today, the general-purpose tandem busbar connector is a new type of connector that replaces most input/output connectors (such as the D-type connector and the MINI DIN connector) and is a special, normalized connector
• Flexible Flat Cable(FFC), also known as Flexible Flat Cable(FFC), can be arbitrarily selected wire number and spacing, so that the wiring is more convenient, greatly reduce the volume of electronic products, reduce production costs, improve production efficiency, the most suitable for moving parts and motherboard, PCB board to PCB board, small electrical equipment as data transmission Cable. General specifications are 0.5mm, 0.8mm, 1.0mm, 1.25mm, 1.27mm, 1.5mm, 2.0mm, 2.54mm and other spacing flexible cable.
