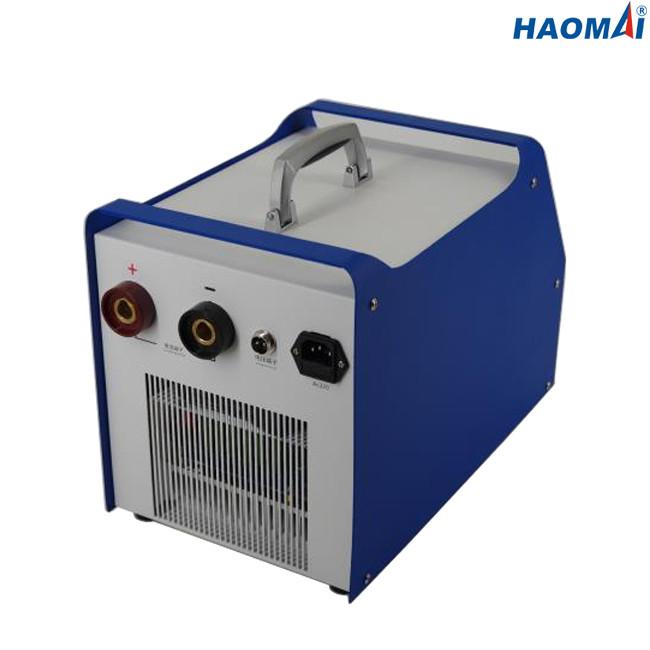

HAOMAI 6V Battery Testing Equipment With 7 Inch Touch Screen

Battery Activator

Model: HD-2612

Battery Activator HD-2612 is designed for activation of 2V, 6V or 12V battery due to the plate sulfide crystallization caused by the bad capacity of valve controlled lead acid battery. It not only performs charge, discharge, activation and impedance test, but also recharges online for battery with low voltage.

Main Features

1) 7-inch touch screen for easy operation

2) Able to perform charge, discharge, activation and impedance test

3) Able to automatically charge or discharge after parameters setting

4) Able to display voltage, current, capacity, time etc. data in real time

5) Able to perform continuous discharge for many times(no more than 99)

6) Test results can be saved on-board or into SD card

7) PC software for data analysis, statistics and test report generation

Technical Data

◇Cell voltage type: 2V, 6V, 12V

◇Cell Voltage measurement range: 0-3V @2V

                                                         0-16V @6V

                                                         0-16V @12V

◇Cell voltage resolution: 0.001V @2V or 6V

                                               0.01V @12V

◇Voltage measurement accuracy: 0.5 %

◇Charge/discharge current range: 1A-100A @2V

                   1A-50A @6V

                   1A-50A @12V

◇Charge/discharge current control resolution: 0.1A

◇Current measurement accuracy: ±1 %

◇Battery capacity check range: 20Ah-1000Ah @2V

                                                    20Ah-300Ah @6V

                                                    20Ah-300Ah @12V

◇Cooling mode: forced air cooling

◇Power supply: AC 220V/120V±15%, 50/60Hz

◇Operation conditions

Temperature: -20 ... +45°C

Humidity: 20%-80%RH

◇Dimensions of host: 210x240x280mm(8.27x9.45x11.02 in)

◇Weight of host: 11kg(24.25 lb)

Battery Activator HD-2612 is ideal instrument for engineers to do battery activation in battery testing.
