25V Internal Resistance Battery Testing Equipment Multimode 2.43 Lb

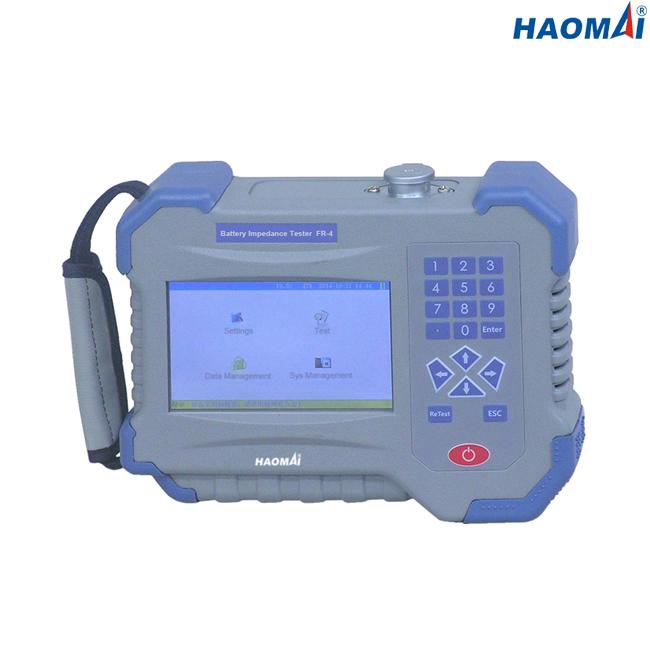

Battery Internal Resistance Tester

Model: FR-4

Battery Internal Resistance Tester FR-4 can test internal resistance and voltage of single battery online, store and process the tested data, give an alarm to the battery fault, and accurately and effectively identify the condition of single battery.

PC analysis software of FR-4 can analyze and display the test data through various charts, and automatically generate test reports.

Main Features

1) 5-inch touch screen for easy operation

2) Able to test battery internal resistance and voltage

3) Both manual and auto test modes available

4) Able to display voltage, current, capacity, time etc. data in real time

5) Able to analyze and compare voltage, impedance and capacity bar chart

6) Enhanced overvoltage protection for safety

7) Test results can be saved on-board or into SD card

8) PC software for data analysis, statistics and test report generation

Technical Data

◇Battery Internal Resistance Measurement

range: 0mΩ-99.999mΩ

accuracy: ±0.5%rdg ±6dgt

resolution: 0.001mΩ

◇Battery Voltage Measurement

range: 0-25V

accuracy: ±0.15%rdg

resolution: 1mV

◇Display: 5-inch color touch screen

◇Data Storage: 64Mbit Flash + 8G SD card

◇Power Supply: 12V, chargeable Li-battery

◇Charger: AC100-240V

◇Standby Time: >8 hours

◇Dimension: 220x170x52mm(8.66x6.69x2.05 in)

◇Weight: 1.1kg(2.43 lb)

Battery Internal Resistance Tester FR-4 is ideal tool for measuring internal resistance and voltage of single battery online.
