55 Dbs Ventilation Laboratory Fume Cupboards Programmed Control
Price:
$8,595.00/Sets 1-9 Sets
MOQ:
1 Piece
Delivery Time:
10-25 Days
Brand:
Black Craftsman
Product Description

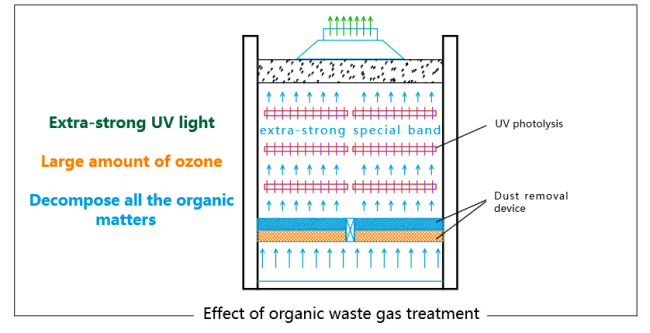

Hot sale Purification UV Photo Oxygen Waste Gas Treatment Equipment Intelligent Fume Hood for Laboratory

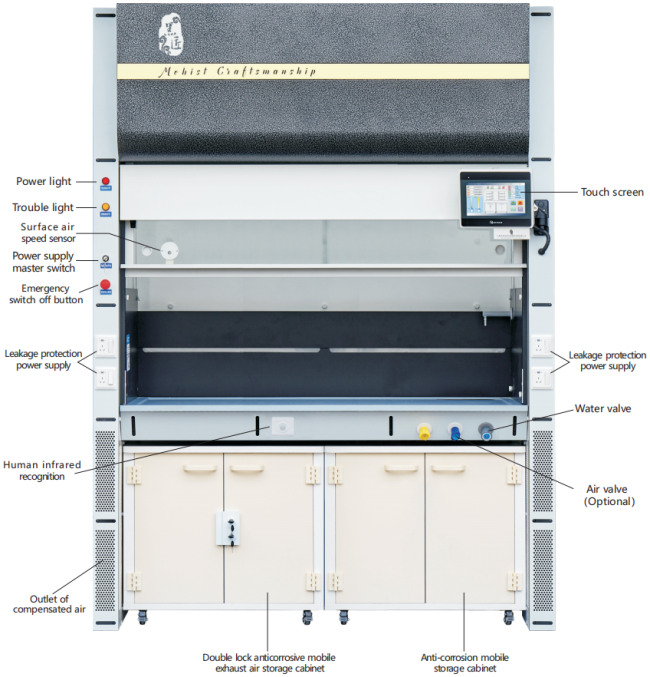

Product features and functions:
1. Set the following 3 functions in one: Organic exhaust purification, Exhaust emission, Fresh air supplement;
2. In the automatic mode, one-button start and stop of all electrical and mechanical device can be achieved through built-in programs; In manual mode, each electrical or mechanical device can be started and stopped independently;
3. Visualization: Operation status of each device is visual via the touch screen; Auto-fault alarm;
4. Monitor and control the resistance and temperature of the Purification system, Auto-alarm and cut off the power when exceeding the set value;
5. Intelligent identify and start the longest-lived UV lamp according to the exhaust flow; Intelligent identify the UV lamp fault and monitor and display the remaining life of each UV lamp;
6. Alarm and display once the sliding door is ultra-high;
7. Provide the safe power supply: Emergency cut-off, Electric leakage protection, Main power control;
8. Safe light source: including adjustable white and non-UV yellow LED lights, External isolation installation;
9. Thermal overload protection for electrical and mechanical devices;
10. Double-door mobile storage cabinet has exhaust and double-lock function;
11. Motorized valve controls the exhaust flow rate;
12. Automatic control surface wind speed.
13. Other functions: water supply terminal, gas supply terminal and other experimental equipment can be installed according to customers' demands.

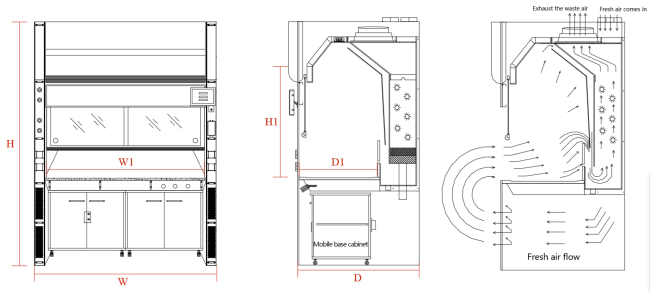

Product structure and performance:
1. Fully disassembled structure: Convenient to deliver and Easy to assemble;
2. Unique down return air diversion structure, timely and effective exhaust waste gas without residue;
3. Exclusive equalized flow design make the flow even and without any dead angle;
4. In the internal visual range will not form condensate due to temperature difference,therefore no dripping formed;
5. The internal airflow direction is not affected by the volume of the exhaust air, thus will not cause turbulence;
6. Easy to operate; Energy-efficient; High-Automatic and Intelligent;

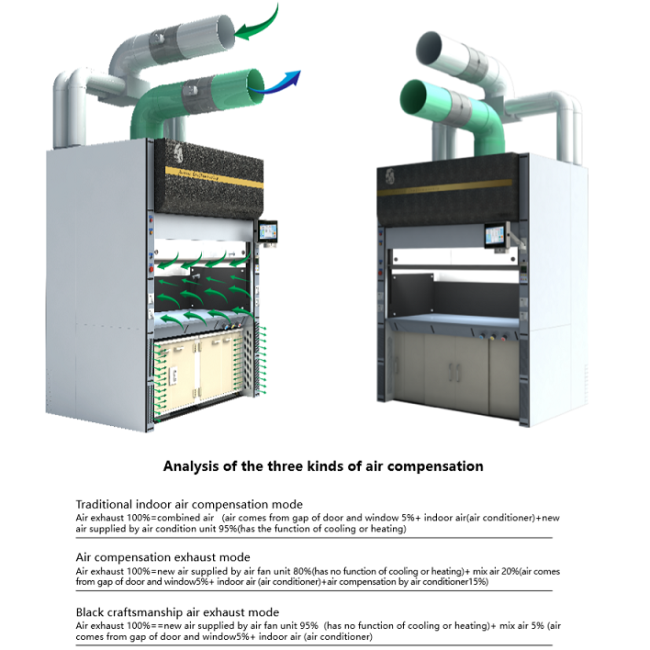

7. Has air compensation channel and connection, saves energy, comfortable;
8. Safe and applicable exhaust bottom cabinet, convenient for you to manage and store all kinds of drugs and reagents;
9. Takes a simplified method of body recognition to make sure the equipment will cut down if there's no one operating;
10. Auto-control surface wind speed
11. Auto-control fresh air supplement flow rate.
Detailed Images

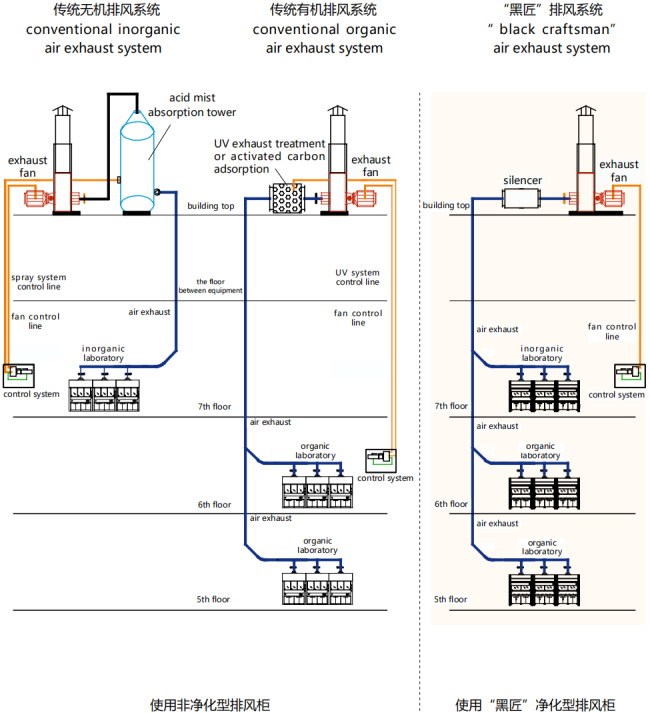

Change of the air exhaust system
The big and inconvenient air purification equipment would not be placed at the top of building except exhaust fan and silencer;
Two sets of ventilation exhaust system merge into one.
Advantages of "Black craftsman" air exhaust system
* Saving the installation space and greatly reducing the load on the roof;
* Reduced the floor reinforcement works, saved the capital construction cost and shortened the construction period;
* When freezing outdoor in cold region, spray purification equipment can be used normally so long as the indoor temperature keep above 0℃, which greatly improves the utilization rate of environmental protection equipment;
* Organic and inorganic exhaust ducts incorporate available so it can save the space of ventilating shaft and the cost of the ducts;
* Reduced the number of fans and frequency conversion control systems to save equipment costs;
* Good indoor environment can extend the overall service life of purification system equipment;
* According to different experimental requirements, the corresponding fume hood can be selected, which can not only improve the purification effect, but also save a lot of energy and consumables, thus reducing the operating cost.
* Reduced the floor reinforcement works, saved the capital construction cost and shortened the construction period;
* When freezing outdoor in cold region, spray purification equipment can be used normally so long as the indoor temperature keep above 0℃, which greatly improves the utilization rate of environmental protection equipment;
* Organic and inorganic exhaust ducts incorporate available so it can save the space of ventilating shaft and the cost of the ducts;
* Reduced the number of fans and frequency conversion control systems to save equipment costs;
* Good indoor environment can extend the overall service life of purification system equipment;
* According to different experimental requirements, the corresponding fume hood can be selected, which can not only improve the purification effect, but also save a lot of energy and consumables, thus reducing the operating cost.
New vision & smart concept build the classic fume hood
Advantage:

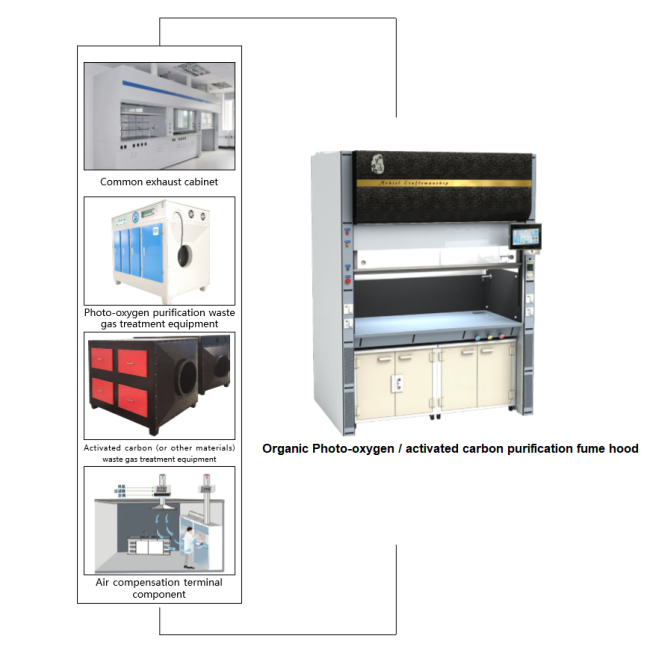

Multi-functional: set four functions in one
Easy to operate: Intelligent mode makes operation simple and management easy;
Safe and practical: Solve the problems caused by high temperature and strong corrosion;
Energy saving and environmental protection:Low power and energy consumption; High purification rate of waste gas.
Conclusion
The " Black craftsman" Lab Fume Hood can maximize the energy saving.
Certificate
Company Introduction
Chengdu Ample Import and Export Co., Ltd. is a professional solution-oriented supplier aiming to be one of the leading Exporter and Producer in Laser Industry Products, Laboratory products, Engine spare parts, and other industry products, etc. with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and advanced designs, our products are extensively used in many industry fields.
With a wide range, good quality, reasonable prices and advanced designs, our products are extensively used in many industry fields.
One of Ample factories is specialized in laboratory protective products to meet the requirements of different kinds of experiments in laboratories.We both provides the customized products and OEM service.
Our company tenet is Top in Quality, Best in Service.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We sincerely welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We sincerely welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Our Services & Strength
On the basis of meeting the requirement of laboratory and producing the up-to-date products, our company commits to R&D and manufacture of high-end air exhausting cabinet, which enables us to produce the safety reliable, economic and smart environmental protection and energy saving products. Energy-saving and air purification are the two core directions and fields of research and development.
