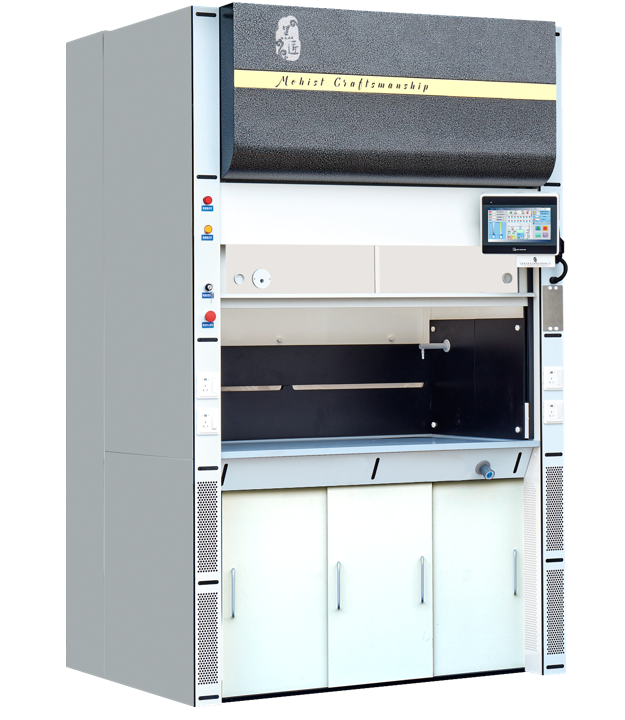

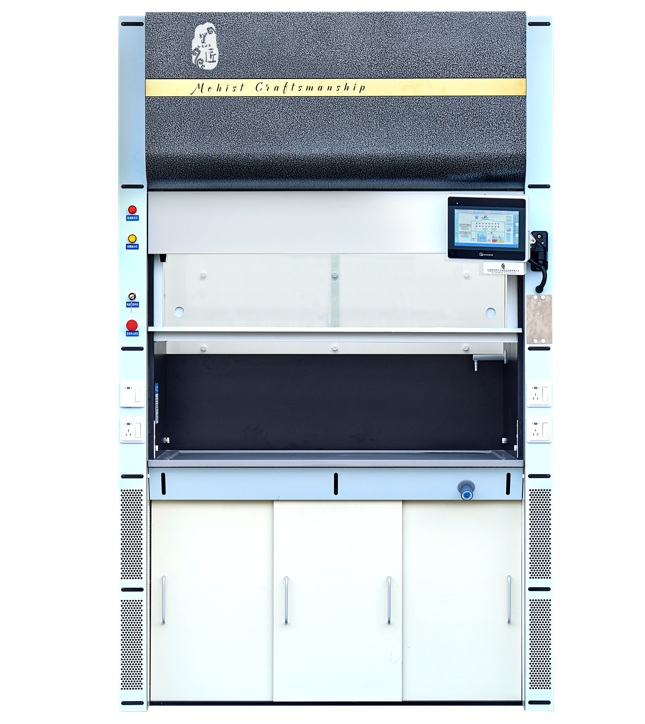

Aluminum Fume Cupboard Exhaust PLC Control Fume Hood In Chemistry Lab 12KW
Price:
$15,925.00/Sets 1-9 Sets
MOQ:
1 Set
Delivery Time:
10-25 Days
Brand:
Black Craftsman
Product Description
High-end Ceramic Board Lab Chemical Fume Extraction Hood for Corrosive Extraction System
Product features:
1. Easy to assemble; Corrosion resistance and high temperature resistance;
2. Unique lower return air diversion structure, timely and effective exhaust without residual;
3. Special flow design makes the flow even, without any dead angle;
4. The internal visual range will not form condensate due to temperature difference, therefore no drip will form;
5. The internal airflow direction is not affected by the volume of the exhaust air, thus will not cause turbulence;
6. Low energy consumption, high degree of automation and intelligence, easy to operate;
7. Has air compensation channel and connection, saves energy, comfortable;
8. Drainage will not be limited by the height of the drain, since it has pump to lift the sewage;
2. Unique lower return air diversion structure, timely and effective exhaust without residual;
3. Special flow design makes the flow even, without any dead angle;
4. The internal visual range will not form condensate due to temperature difference, therefore no drip will form;
5. The internal airflow direction is not affected by the volume of the exhaust air, thus will not cause turbulence;
6. Low energy consumption, high degree of automation and intelligence, easy to operate;
7. Has air compensation channel and connection, saves energy, comfortable;
8. Drainage will not be limited by the height of the drain, since it has pump to lift the sewage;
Product function:
1. Exhaust gas emission function;
2. New air compensate function;
3. Inorganic exhaust gas purification function;
4. Sewage treatment function (Acid and alkali neutralization);
5. All electromechanical equipment can Start and stop independently, and some equipment are linked together;
6. Purification system resistance monitoring: automatic alarm when the set value is exceeded;
7. Purification system temperature monitoring: automatically alarm when the rated value is exceeded, and automatically cut off
the outlet power;
8. Automatic monitoring the level of acid and alkali solutions and spray media;
9. Manually add acid and alkali solutions (through pump);
10. Manual discharge of sewage (via sewage pump) and cleaning of spray system (via spray pump);
11. Automatic replenishment of tap water (through water supply solenoid valve);
12. Provide safe power supply (including phase-out and phase-sequence protection, Emergency power cuts, Leakage protection,
General power control;
13. Safe light source (including adjustable white and non-ultraviolet yellow LED lights), External isolation mounting;
14. Water shortage protection function for sewage pump and spray pump; 15. Overheat protection function for mechanical and
electrical equipment;
15. Alarm function of sliding door in extra high position;
16. The exhaust air volume is controlled by electric regulating valve;
17. Other functions: water supply terminal, gas supply terminal and other experimental equipment can be installed according to
customers' demands.

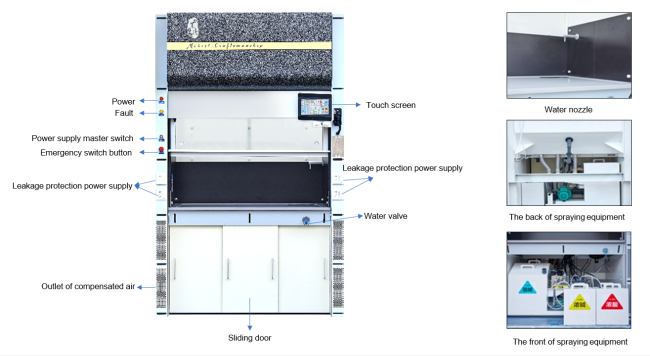

Detailed Images

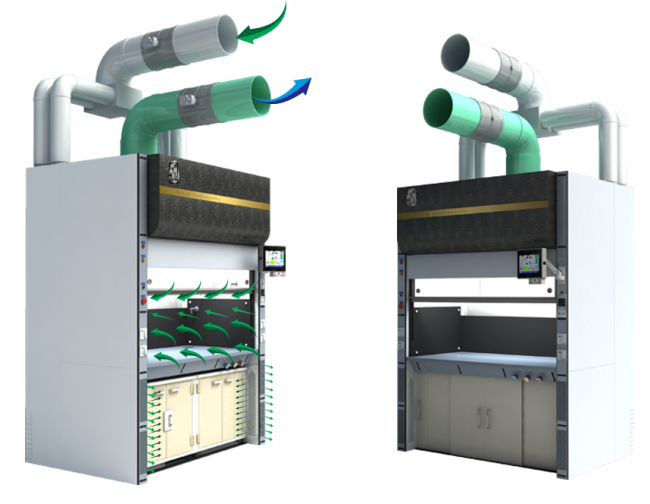

Analysis of the 3 kinds of air compensation:
Traditional indoor air compensation mode :
Air exhaust 100%=combined air (air comes from gap of door and window 5%+ indoor air(air conditioner)+new air supplied by air condition unit 95%(has the function of cooling or heating)
Air compensation exhaust mode:
Air exhaust 100%=new air supplied by air fan unit 80%(has no function of cooling or heating)+ mix air 20%(air comes from gap of door and window 5%+ indoor air (air conditioner)+air compensation by air conditioner 15%)
Black craftsmanship air exhaust mode:
Air exhaust 100%=new air supplied by air fan unit 95% (has no function of cooling or heating)+ mix air 5% (air comes from gap of door and window 5%+ indoor air (air conditioner)
Conclusion:
Air compensation exhaust mode:
Air exhaust 100%=new air supplied by air fan unit 80%(has no function of cooling or heating)+ mix air 20%(air comes from gap of door and window 5%+ indoor air (air conditioner)+air compensation by air conditioner 15%)
Black craftsmanship air exhaust mode:
Air exhaust 100%=new air supplied by air fan unit 95% (has no function of cooling or heating)+ mix air 5% (air comes from gap of door and window 5%+ indoor air (air conditioner)
Conclusion:
The use of "black craftsman" exhaust cabinet can maximize the energy savings.
New vision and smart concept create a series of classic air exhaust cabinet
Advantage:
Multi-functional:
Multi-functional:
With 4 functions

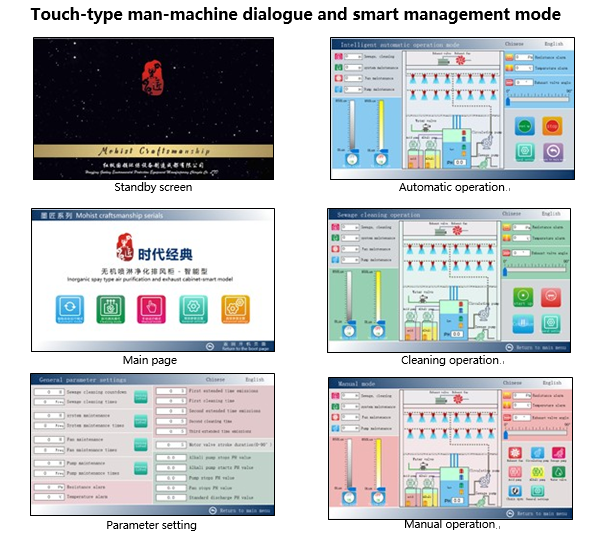

Easy to operate:
Easy to operate:
Fully intelligent mode makes your operation more simple and management easier; Safe and practical:solve the problems caused by high temperature and strong corrosion;
Energy saving and environmental protection:
Energy saving and environmental protection:
Low power and energy consumption; High purification rate of waste gas.
Certificate
Company Introduction
Chengdu Ample Import and Export Co., Ltd. is a professional solution-oriented supplier aiming to be one of the leading Exporter and Producer in Laser Industry Products, Laboratory products, Engine spare parts, and other industry products, etc. with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and advanced designs, our products are extensively used in many industry fields.
With a wide range, good quality, reasonable prices and advanced designs, our products are extensively used in many industry fields.
One of Ample factories is specialized in laboratory protective products to meet the requirements of different kinds of experiments in laboratories.We both provides the customized products and OEM service.
Our company tenet is Top in Quality, Best in Service.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We sincerely welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We sincerely welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Our Services & Strength
On the basis of meeting the requirement of laboratory and producing the up-to-date products, our company commits to R&D and manufacture of high-end air exhausting cabinet, which enables us to produce the safety reliable, economic and smart environmental protection and energy saving products. Energy-saving and air purification are the two core directions and fields of research and development.
FAQ
1. Where is your company located?
A: Our company located in Chengdu city, Sichuan Province, China.
A: Our company located in Chengdu city, Sichuan Province, China.
2. Are you manufacturer of trading company?
A: We have our own manufacturers. But Ample just in charge of international businesses. We also have our own brand and
professional technical team to support the sales and after sale service. We accept OEM orders with reasonable price as well.
3. What is your product range?
A: Our products include Laser Industry Products, Laboratory Products, Electric Cleaning Vehicles, Engine Spare Parts, and other industry products, etc. with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and advanced designs, our products are extensively used in many industry fields.
4. what is the normal lead time?
A: We have our own manufacturers. But Ample just in charge of international businesses. We also have our own brand and
professional technical team to support the sales and after sale service. We accept OEM orders with reasonable price as well.
3. What is your product range?
A: Our products include Laser Industry Products, Laboratory Products, Electric Cleaning Vehicles, Engine Spare Parts, and other industry products, etc. with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and advanced designs, our products are extensively used in many industry fields.
4. what is the normal lead time?
A: Different products have different lead time. For most product, such as laser marking machine, we have stock and can make fast delivery within 15 days after receipt of payment. But for some customized products, or any other products such as lab fume hood, etc., we may need around 30-50 days, please confirm with your sales before placing order.
5. Is there any after service from your company?
A: YES. If you have any question about installation or operation after you received our products, please contact us by telephone / WhatsApp/ Skype/ WeChat/ mail. We will try our best to reply you on time for fast solution
6. What guarantee do you provide for your machines?
A: Normally we provide one-year free spare parts for all the machines. For different products, the guarantee period is different. Please confirm with your sales before placing order.
5. Is there any after service from your company?
A: YES. If you have any question about installation or operation after you received our products, please contact us by telephone / WhatsApp/ Skype/ WeChat/ mail. We will try our best to reply you on time for fast solution
6. What guarantee do you provide for your machines?
A: Normally we provide one-year free spare parts for all the machines. For different products, the guarantee period is different. Please confirm with your sales before placing order.
