Copper Planetary Drive Gearbox 16mm Diameter 10000RPM Speed CCW

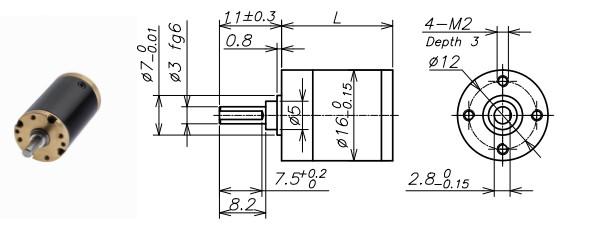

High quality Regular Planetary Gearbox.D16mm.L 18.5/22.4/ 26.3/30.2/34.0mm
Product introduction:
1.Regular Planetary Gearbox diameter 16mm.length 18.5 / 22.4 / 26.3 / 30.2/34.0mm..
2.Gear type: Straight teeth Average backlash on load: ≤3°
3.Output shaft : stainless steel hardened Radial Play : ≤ 0.04
4. Main gear: Alloy Steel Permissible axial load : ≤10N
5. Ring gear : Steel Permissible force press fits : ≤50N (5mm from mounting face)
6.Adapter plate: Copper Recommeneded inut speed ≤10000RPM.
7.Bearing AT output :Ball bearing Operating temperature range: -40~100℃.
8Axial play: 0~0.3 Operating hunidity range : 10-90%RH. Directions : CW/CCW.
Product Detail:
| Number of stage | 1 | 2 | 3 | 4 | 5 |
| Reduction ratio X :1 |
3.3 3.8 4.4 5.4
|
11 19 12 20 14 24 16 29 18 |
37 62 97 41 64 104 47 72 109 53 76 128 84 158 |
175 370 591 198 410 690 231 455 850 270 522 316 561 |
742 1996 1014 2458 1185 3027 1386 3728 1621 4592 |
| Gearbox length L (mm) | 18.5 | 224 | 26.3 | 30.2 | 34.0 |
| Max.continuous torque(N.m) | 0.3 | 0.5 | 0.6 | 0.7 | 0.7 |
| Max.intermitten torque(N.m) | 0.5 | 0.7 | 0.9 | 1 | 1 |
| Gearbox efficiency | 90% | 81% | 72% | 65% | 59% |
| Moment of inertia range(g.cm²) | 0.06 | 0.05 | 0.05 | 0.05 | 0.05 |
| Gearboxweightapprox (g) | 23 | 28 | 31 | 36 | 40 |
| Gearbox model | AM-16PA-X-01 | AM-16PB-X-01 | AM-16PC-X-01 | AM-16PD-X-01 | AM-16PE-X-01 |
Recommended Motor :
Coreless Motor: AM-CL1642MA
Coreless Motor(w/E): AM-CL1623MAN AM-CL1626MAN AM-CL1633MAN AM-CL1643MAN
Brushless Motor(w/E): AM-BL1640A/B
Recommended Encoder :
Suitable for Coreles Motor: Encoder S : AM-EN1611S***
Suitable for Brushless Motor : Encoder S : AM-EN1611S*** Encoder T : AM-EN1612T***
Assun Planetarty gearbox can install the corresponding with Encoder and DC Graphite Brush/ Brushless Motor
Assun precision plantary gearbox application of positive element in intelligent equipment
Motor data tested at 25℃.Motor operation exceeding continuous limits will reduce life or result in damage.
At elevated ambient temperature.load current must be reduced.
