45pcs / Min Ultrasonic Face Mask Making Machine , Fish Mask Making Machine
Flat High Production Capacity Fish Mask Particulate Respirator Machine
Fully automatic fish mask machine: According to customer needs, Chuangyu-Tech is controlled by PLC programming ,through automatic feeding , embossing, folding, trimming,head band installation and other process at one at one time, successfully developed and designed a new automatic fish-shaped mask machine High degree, simple operation and more user-friendly features.
Technicai Parameters
| Model: | CY-AUM2 fish mask making machine |
| Material: | 240-300mm Two layers of nonwoven and two layers of melt-blown(Customize up to 6 floors) |
| Voltage: | AC 220V, 50HZ |
| Power: | 15KW |
| Weight: | ≈1500KG |
| Size: | Length width and height: 12814(L)*1597.5(W)*1931(H) |
| Efficiency: | 40 pcs/min(±10%) |
| Product specifications: | can be customized according to customer requirement. |
Process Chart:
Automatic feeding - Built-in nose strip - Ultrasonic edge banding - Spray letters and LoGO [tavg set] - Automatic sticking sponge - trmming One-time trimming (shape) - Ultrasonic edge banding 2 - head band installation 1 - head band installation - 2 Second trimming - Finished product output
Machine Features:
The-whole machine consists of the material rack part, the upper nose line part, ultrasonic edge banding 1 , spray letter and LOGO two sets, automatic sponge nose foam sticking, edge folding,primary trimming, ultrasonic edge banding 2,head band installation, secondary trimming, finished product blanking, Non-material product detection, automatic packaging,servo motor, ultrasonic welding technology tocomplete production.
1.Material rack part: automatic feeding, The material wheel is designed with a brake device,Material tension can be adjusted.
2.Nose bridge section: the cylinder is welded by ultrasonic wave, and the nose bridge isautomatically conveyed
3.Shape welding part: the mold is matched with ultrasonic wave to complete the texture welding.
4.Folding: folding fabric
5.Shape cutter part: customized cutter, roll-cutting forming.
6.Headband install: Adopt full servo control, high efficiency, up to 40PCS per minute(土10%)
7.Output of finished products: output and collection of finished masks
8.NG product detection: The NGprodyct will be automatically caught in the NG container (Optional)
9.Automatic packaging ( Optional)

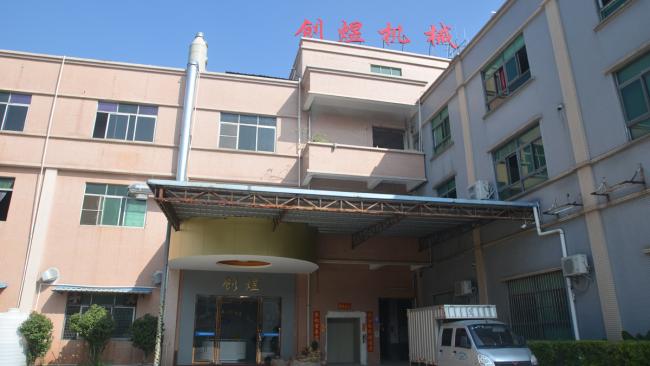

Chuangyu Ultrasonic Machinery Factory Show:
This machine is composed of the main body and loop welding machine. The main body forms the mask sheet, which is transferred to the loop welding machine by turning over for welding, so as to realize the production of the mask. The high-speed production of the small loop welding machine is fully automated, without manual operation, so as to improve efficiency , the output up to 160pcs/min.
