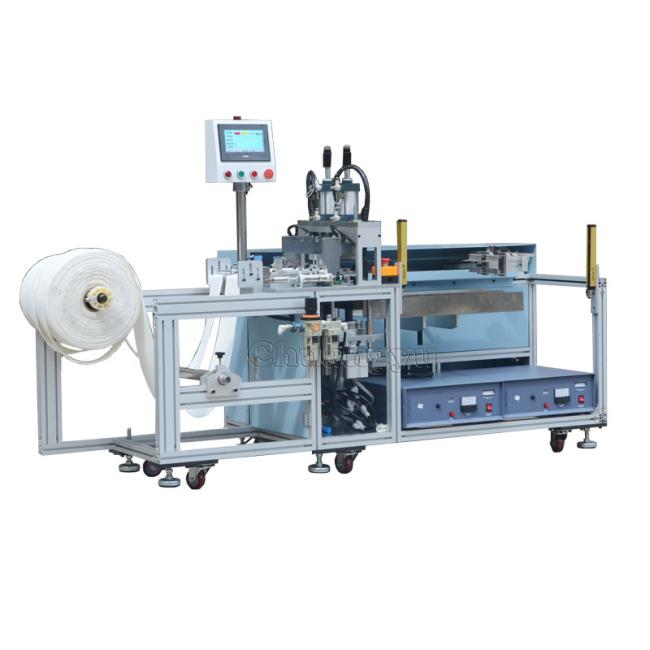

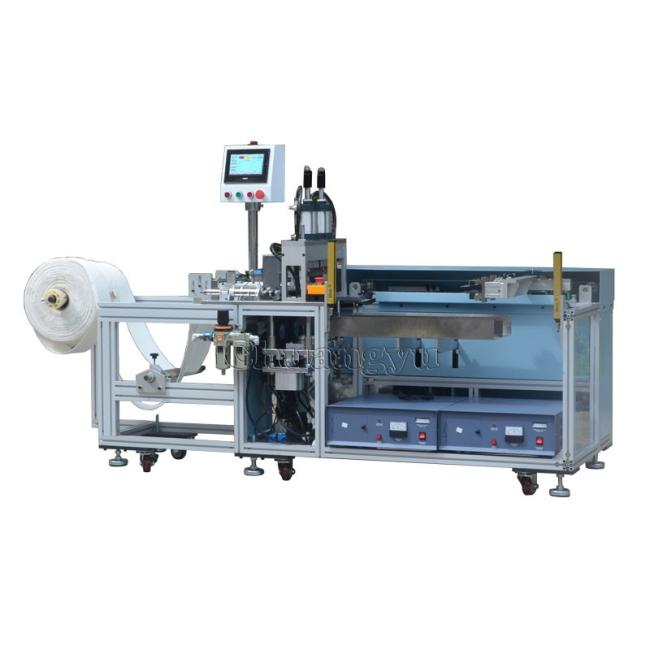

250kg Automatic Ultrasonic Cutting Machine 4500W For Cleaning Mop Microfiber
Cleaning Mop Microfiber Ultrasonic Cutting Machine For Broom
Ultrasound Technology
Ultrasonic cutting uses a special blade called “sonotrode," which vibrates at a frequency between 20 and 30 kHz. This vibratory frequency is obtained from an ultrasound generator. As a result, the sonotrode acts like an alternating moving knife that repeats itself 20,000 times per second.
The result is a significant reduction in the cutting effort and very low contamination of the product. This technology is therefore particularly suited for cutting fragile products.
Parameters:
| Model | CY-JQ130D2 Ultrasonic Fabric Cutting Machine |
| Material | 2 rolls, max width: 130mm or other size available |
| Voltage / Frequency | 220V / 50Hz |
| Power | 4500W |
| Weight | 250kg |
| Dimension | 2600 x 700x1200mm |
| Air Pressure | 0.5-0.8Mpa |
| Speed: | 40-50pcs / min |
| Other requirements | Custom-made OEM available |
Benefits & advantages
Cutting a variety of formats without changing tools
Display of statistics, instructions and defects, format setting and memorization via 15-inch color touch screen,
High-pressure cleaning possible

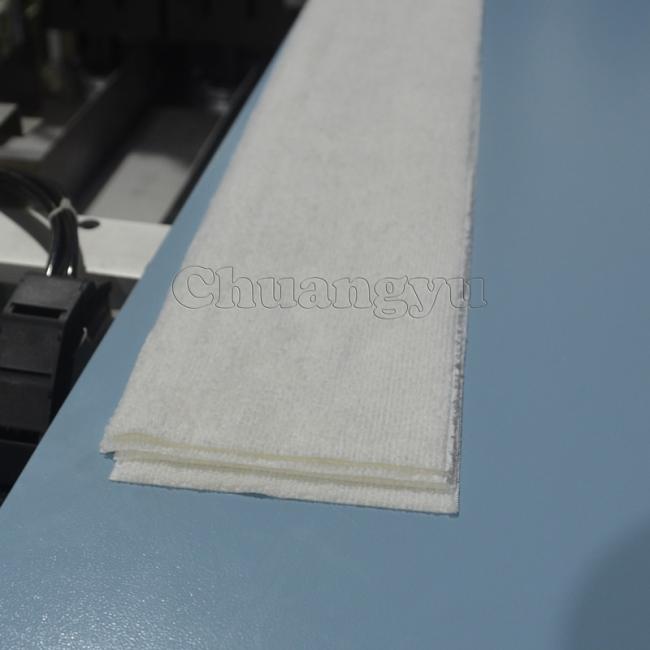

Cutting samples:
