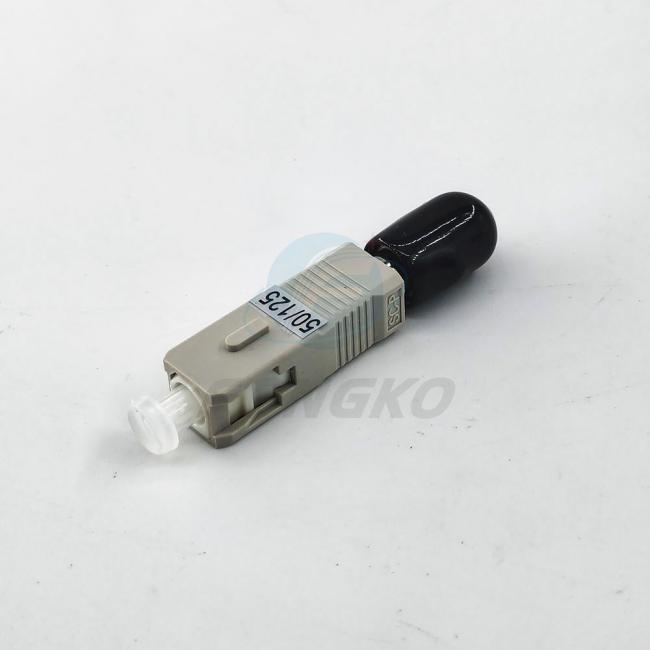

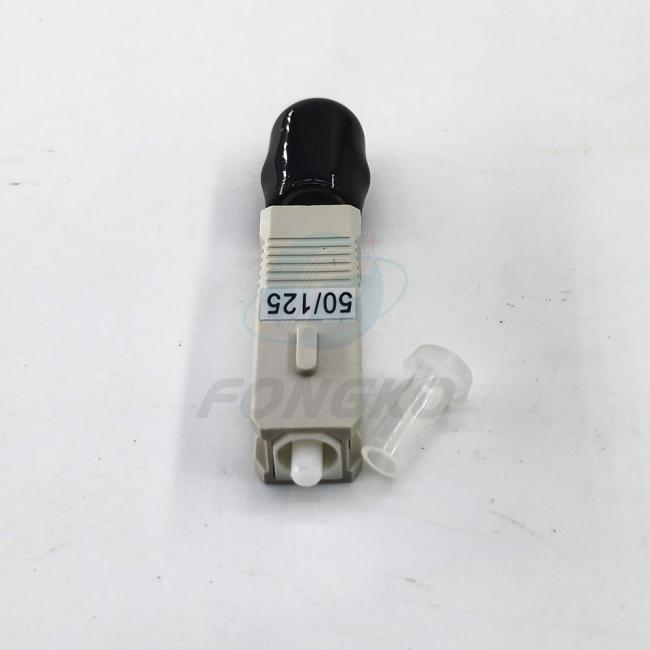

ST PC Female To SC UPC Male Fiber Optic Adapter Multi Mode 50/125um
Top Sales Multi mode 50/125 um ST/PC Female to SC/UPC Male Fiber Optic Convert Adapter
Male to female hybrid adapter is integrated by pre-polished fiber and ferrule. It’s tiny and stable, and widely used in fiber optic test equipment and emergency maintenance.
The male and female terminals shall comply with their corresponding IEC international standards.
Embedded optical fiber types such as 9 / 125, 62.5/125 and 50 / 125 can be selected.
It can solve the butt joint scheme between UPC and APC with two different shape end faces.
The adapter structure is convenient for connection and use.
Good interchangeability and reliability.
Low insertion loss and high return loss.
| Items | Single mode | Multimode |
| Insertion Loss | ≤0.3dB | |
| Return Loss | UPC≥50dB;APC≥60dB | UPC≥30dB |
| Sleeve Material | Ceramic | |
| Durability | 1000times | |
| Working Temperature | -40~+75℃ | |
