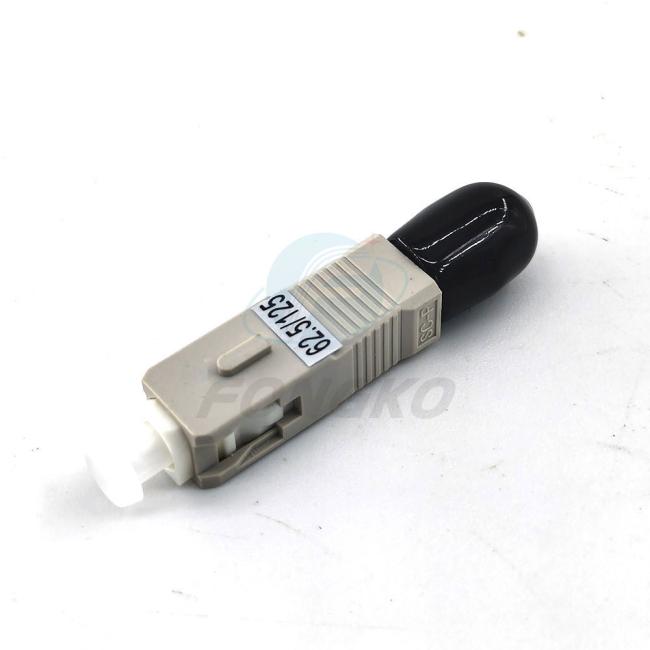

Male Multimode 62.5/125um Fiber Optic Hybrid Adapter ST UPC Female To SC UPC
Wholesales Male Multi mode 62.5/125 um ST/UPC Female to SC/UPC Fiber Optic Hybrid Adapter
The embedded optical fiber and the appropriate matching technology of connecting the core and sleeve can It provides users with a simple and reliable solution when two or more different optical fiber transmission joints are connected, Users can choose 9 / 125, 50 / 125, 62.5/125 and other fiber core modes and corresponding connector types as needed.
The male and female terminals shall comply with their corresponding IEC international standards.
Embedded optical fiber types such as 9 / 125, 62.5/125 and 50 / 125 can be selected.
It can solve the butt joint scheme between UPC and APC with two different shape end faces.
The adapter structure is convenient for connection and use.
Good interchangeability and reliability.
Low insertion loss and high return loss.
| Items | Single mode | Multimode |
| Insertion Loss | ≤0.3dB | |
| Return Loss | UPC≥50dB;APC≥60dB | UPC≥30dB |
| Sleeve Material | Ceramic | |
| Durability | 1000times | |
| Working Temperature | -40~+75℃ | |
