Friction Type Six Ribs Kelly Bar Drilling Iso9001
Manufacturer sale high quality friction kelly bar drilling

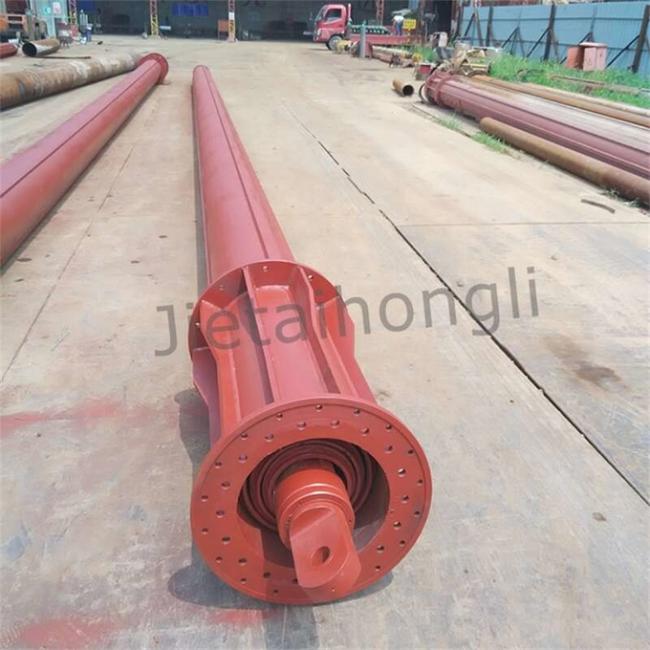

Friction Kelly Bar
Friction type drill Kelly bar is a kind of drill pipe type with international advanced six-ribs distribution technology composition.The Kelly bar can generate pressure force when the Kelly bar rotarying can produce peripheral force and the rotary passing down the pressure force can produce the friction force. It is simple operation, drilling depth . it is suitable for soft soil layer and mud sand layer.The complete set of Kelly bar is with light weight, high strength, high linearity of the single drill pipe.; The inner and outer layer collocate reasonably , with good wear resistance plate.. it is greatly to meet the special requirement of the drill rig machines.
Product Details
Specification
| No. |
Diammeter of The First Section
|
Sections | Key Pressure Type | Length of per section(m) | Drill depth | Torque(KN.M) | ||
| 1 | ¢299 | 3 | 4 | Friction | 9-14 | 24-65 | 100 -120 | |
| 2 | ¢342 | 3 | 4 | 5 | Friction | 9 - 14 | 24 - 65 | 100 -120 |
| 3 | ¢355 | 3 | 4 | 5 | Friction | 9 - 14 | 24 - 65 | 100-120 |
| 4 | ¢368 | 3 | 4 | 5 | Friction | 9 - 14 | 24 - 65 | 150-180 |
| 5 | ¢377 | 3 | 4 | 5 | Friction | 9 - 14 | 24 - 65 | 150-180 |
| 6 | ¢394 | 3 | 4 | 5 | Friction | 9 - 15 | 24 - 70 | 180-200 |
| 7 | ¢406 | 3 | 4 | 5 | Friction | 9 - 15 | 24 - 70 | 180-200 |
| 8 | ¢419 | 3 | 4 | 5 | Friction | 9 - 15 | 24 - 70 | 200-230 |
| 9 | ¢440(445) | 4 | 5 | 6 | Friction | 9 - 15 | 24 – 85 | 220-260 |
| 10 | ¢470 | 4 | 5 | 6 | Friction | 9 - 18 | 24 – 102 | 220-260 |
| 11 | ¢508 | 4 | 5 | 6 | Friction | 9 - 18 | 24 – 102 | 260-360 |
| 12 | ¢530 | 4 | 5 | 6 | Friction | 9 - 20 | 32 – 114 | 320-400 |
| 13 | ¢580(575) | 4 | 5 | 6 | Friction | 9 - 24 | 32 – 138 | 360-420 |
| 14 | ¢630 | 4 | 5 | 6 | Friction | 9 - 26 | 32 - 150 | 400-500 |
Certificates and Patents

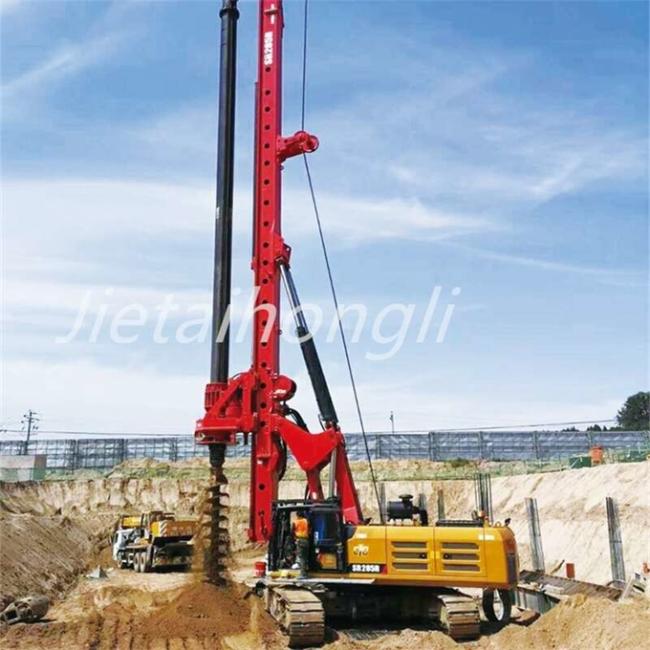

Construction Site
Welcome Contact Us
Due to space limitations, not all product details are displayed. For details, please consult Cathy Lee, WhatsApp+8613311085686
