Big Load Pallet Truck Drive Wheel , 500kg Agv Replacement Parts

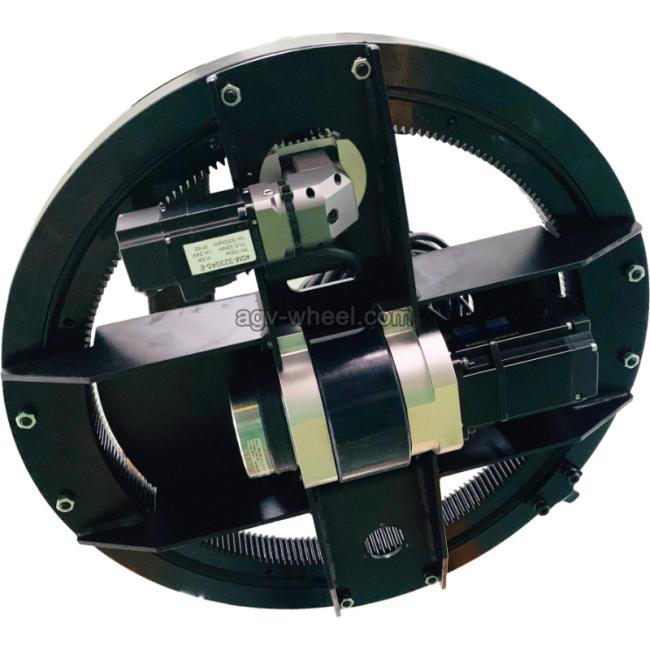

Super Low Height AGV Drive Wheel Big Load Latent Low-Profile Truck
Specification
|
Item
|
Motor Data
|
|
Model
|
ZL-130
|
|
Traction Data
|
|
|
Motor Type
|
Servo
|
|
Power S2-60 min
|
750 W
|
|
Rated Voltage
|
48 V
|
|
Rated Current
|
20 A
|
|
Rated Speed
|
3000rpm
|
|
Rated Torque
|
2.39 Nm
|
|
Gear Ratio
|
1:34
|
|
Wheel Diameter
|
125mm
|
|
Brake Torque
|
8Nm
|
|
Encoder
|
Increment / Absolute value
|
|
Steering Data
|
|
|
Power S2-60 min
|
200W
|
|
Rated Voltage
|
48V
|
|
Rated Current
|
5.21A
|
|
Rated Speed
|
3000rpm
|
|
Rated Torque
|
0.64
|
|
Encoder
|
Increment / Absolute value
|
Description
DC horizontal driving wheel is a multi-functional driving device which integrates power, transmission mechanism and walking mechanism. Its structure is compact and easy to install. DC horizontal drive wheel has the characteristics of high efficiency, small turning radius, long service life, low noise and maintenance-free. It is widely used in the drive of various warehouse vehicles.
The steering wheel controls the steering by moving relative to the car body. Therefore, when two or more steering wheels are installed, the car can go straight in any direction, that is, translate, so the AGV equipped with more than two steering wheels can pass through the narrow Space, which is not available in the differential method
Our Advantages
1. Lower price
Factory price directly.
2. Products strict inspection
Ensure compliance with relevant standards.
3. Location
Close to Shanghai port, China. Reduce the transportation cost and time, ensure timely delivery.
4. Equipment
Have many kinds of casting equipment, stamping equipment, testing equipment, CNC machine, spraying
equipment. Ensure product assembly line work, speed up the production process.
