SINO Digital Readout System DRO Linear Scales
SINO digital readout (DRO) is LCD display (incremental signal) usually with an integrated keyboard and some means of numeric representation. The optical principle that works through the moiré fringes on the grating generates pulse signals, which the digital display meter converts into digital displays. Its integral computer reads signals generated by optical linear glass scale or angle (rotary )encoders installed to track machine axes, using these measures to keep track of and display to a machine operator the workpiece position (e.g., milling machines), or tool position (lathes, grinders, etc) in space.
Operation setting
SDS 6-3VA DRO is a precise measuring product, with the main purpose of providing detection and locating functions for test instruction or during the processing of various manual machine tools of different types.
SINO digital readout system is commonly fitted to machines, especially for metal working — lathes, cylindrical grinders, milling machines, surface grinders, boring mills & other machine tools — to allow the operator to work faster and with greater accuracy. DROs are used for manual machines
It's a three-axis system (or 2 axes optional) X, Y, Z axes are common on milling machines; X, Z, Z0 for the lathe machine. It reads resolution 0.1μm,0.2μm,0.5μm,1μm,2μm,5μm, 10μm

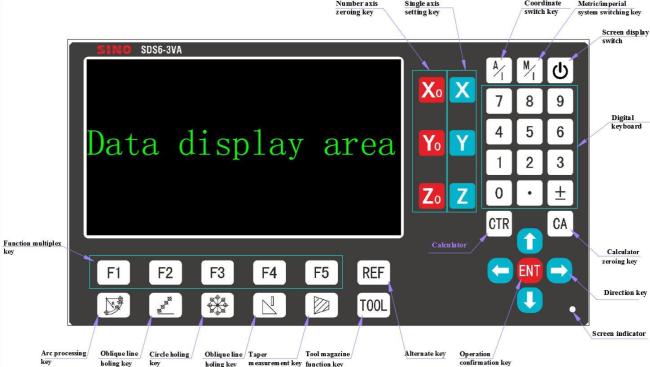

Description KEY of the SDS6-3VA DRO
| DRO Display Key Description | |||||||||||||||||||||||||||||||
| Key symbol | Function Description | ||||||||||||||||||||||||||||||
 |
Number axis zeroing key | ||||||||||||||||||||||||||||||
 |
Single axis setting key | ||||||||||||||||||||||||||||||
 |
Number keys | ||||||||||||||||||||||||||||||
 |
Decimal point enter key | ||||||||||||||||||||||||||||||
 |
Symbol enter key | ||||||||||||||||||||||||||||||
 |
Metric/imperial system switching key | ||||||||||||||||||||||||||||||
 |
Operation confirmation key | ||||||||||||||||||||||||||||||
 |
Calculation function key (for entering or quiting the calculator state) |
||||||||||||||||||||||||||||||
 |
Calculator zeroing key | ||||||||||||||||||||||||||||||
 |
Circle holing key (for equally divided hole pocessing on an arc) |
||||||||||||||||||||||||||||||
 |
Oblique line holing key (for equally divided hole pocessing on an oblique line) |
||||||||||||||||||||||||||||||
 |
Arc processing key (for processing the flat surface of a workpiece into an arc surface) |
||||||||||||||||||||||||||||||
 |
Oblique processing key (for processing the surface of a workpiece into an oblique surface) |
||||||||||||||||||||||||||||||
 |
Up, down, left and right (direction) selection key | ||||||||||||||||||||||||||||||
 |
Taper measurement key (lathe meter) | ||||||||||||||||||||||||||||||
 |
Tool magazine function key (lathe meter) | ||||||||||||||||||||||||||||||
 |
Alternate key | ||||||||||||||||||||||||||||||
 |
Function multiplex key | ||||||||||||||||||||||||||||||
Other option

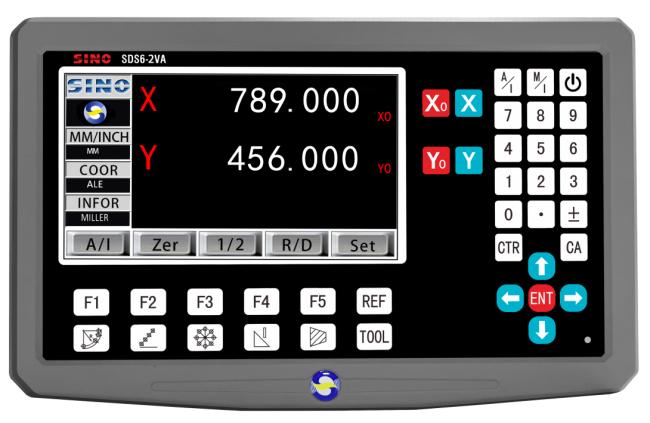

SDS6-2VA 2 axes digital readout system for lathe machine :
