FC / SC / ST / LC In Line Variable Attenuator Mechanical 0.8-60db Optical Fiber 980nm
• Low raw loss
• High accuracy
• Wide attenuation range
• Small size
application
• Optical passive component testing
• Optical laboratory use
• Fiber system testing
Performance
| parameter | ||
| Wavelength | nm |
980nm
|
| Bandwidth | nm |
±40
|
| Insertion loss | dB |
Typ :0.8 Max:0.9
|
| Attenuation range | dB |
0.8~60
|
| PDL | dB |
≤0.1
|
| Return loss | dB |
≥35
|
| Attenuation accuracy | dB |
≤0.02
|
| Fiber Type |
Hi1060
|
|
| Connector type |
FC SC LC or customize
|
|
| Fiber length | m |
≥1.0
|
| Transmission power | mw |
≤500
|
| temperature | ℃ |
-20～+70
|
| Storage temperature | ℃ |
-40～+85
|
| Dimensions | mm |
26x16x8
|

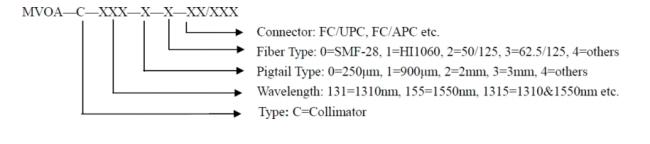

Product Ordering Information:
package&shipping
We can provide packing according to customer's requirement, quantity, weight and volume.
Our Services
We can provide customized products for customers. We only need to provide requirements, samples, specifications, drawings, etc.
