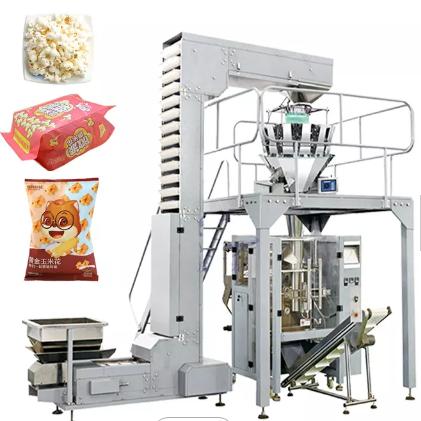

Beans Sugar Rice Granule Packing Machine Automatic 3kw 2500ml
Shilong Hot Sale High Quality Granule Packing Machine Automatic For Beans Sugar Rice
Main feature
1.Workflow:cup volumetric measuring→coding(optional)→bag making→filling→gas injection/exhaust(optional)→sealing→counting..
2.Computer/PLC control system,photoelectric tracking,equipped with fault display system,easy to operate and maintain.
3.Can make hole punching blade(round/euro hole),linked bags device or easy tear notch device and so on according to customer's request.
4.Machine body and all product touching parts are made of stainless steel.(measuring cup material:nylon/stainless steel)
Application
printing,cutting , finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt isresistant to be worn-out.
4. External film releasing mechanism: simpler and easier installation of packing film.
5. Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple .
6. Close down type mechanism , defending powder into inside of machine.
Granule Packaging Machine Specification
| Packing Material | OPP / CPP OPP / PE NILO / PE PE |
| Measuring Range (Max) | 2500ML |
| Bag Width | 100 - 200mm |
| Bag Length (max) | 300mm |
| Packing Speed | 5 - 60bag / min |
| Max Width of Roll Film | 420mm |
| Voltage | 220VAC / 50HZ |
| Power | 3KW |
| Product Size | 1265L * 1060W * 1600H |
| Net Weight |
400KG |
| Name | 10 Head Weigher Checkered Plate |
| Model No. | SL - 10 - 1 |
| Features |
60o steep discharge chute makes sure products discharge is acted smoothly. Equipped with a especially designed central cone, rotary top cone can dispense the products into each linear feeder pans evenly. Rotary rollers equipped between each linear feeder pan helps to dispense the long soft products into feed hoppers. It is suitable for weighing soft and material, such as cheese,jelly candy etc. |
| Max. Capacity(g) | 100 - 1000g |
| Weighing Accuracy | ± 1 - 5g |
| Max. Weighing Speed | 50Bags / Min |
| Hopper Volume | 1.6L |
| Control Panel | 7"LCD Touch Screen |
| Driving System | Step Motor |
| Power Requirements | 220V / 1500W / 50/60HZ / 10A |
| Dimension(mm) | 1620 ( L ) × 1100 ( W ) × 1100 ( H ) |
| Weight | 380KG |
| Name | Dip angle style elevator |
| Model No. | SL - 350 |
| Operational Throughput | 6 cubic / h |
| Voltage | 220V / 380V |
| Power | 2KW |
| Name | Finished Product Conveyor |
| Model No. | SLIV-1000 |
| Material | 304SS |
| Conveying height | 800mm |
| Throughput | 50 - 300mm/s |
| Power | 250W |
| Dimension | 2190L* 437W * 1050H |
