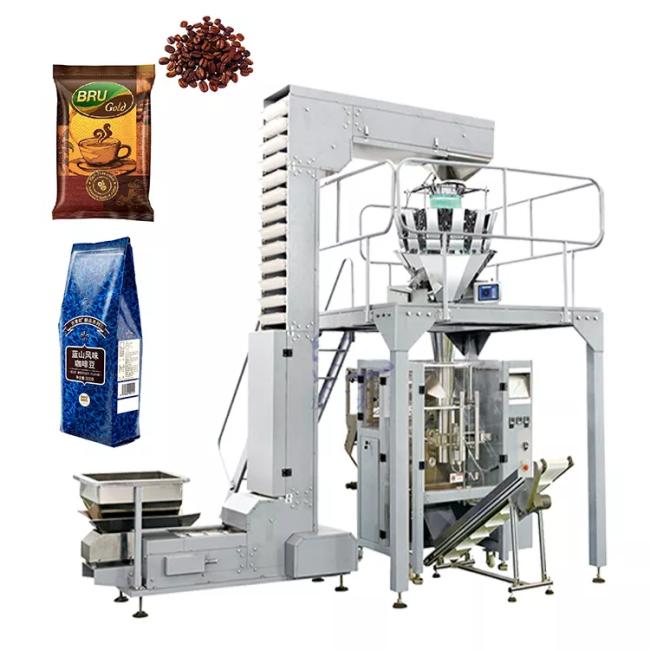

420mm Automatic Granule Packing Machine For Beans Chip Candy
Shilong Hot Sale Automatic Granule Packing Machine for Beans Chip Candy
Application
Features
1)English and Man-machine interface, step motor driven,
2) Photoelectric tracking system for precise bag length and position of film.
3) Filling volume and bag length are easy to adjust on the interface without changing mould.
4) Digital temperature controller for vertical and horizontal sealing, intuitive and accurate.
5) No leak with high filling accuracy
6) Easy operation, smooth performance, low noise, compact construction, convenient to maintenance, take up small floor space in high packaging speed and efficiency.
7) The machine is all made of stainless steel S/S304.
8) A big range of packaging film: paper/Poly/cellophane/plated aluminum/BOPP/CPP.
Granule Packaging Machine Specification
| Packing Material | OPP / CPP OPP / PE NILO / PE PE |
| Measuring Range (Max) | 2500ML |
| Bag Width | 100 - 200mm |
| Bag Length (max) | 300mm |
| Packing Speed | 5 - 60bag / min |
| Max Width of Roll Film | 420mm |
| Voltage | 220VAC / 50HZ |
| Power | 3KW |
| Product Size | 1265L * 1060W * 1600H |
| Net Weight |
400KG |
| Name | 10 Head Weigher Checkered Plate |
| Model No. | SL - 10 - 1 |
| Features |
60o steep discharge chute makes sure products discharge is acted smoothly. Equipped with a especially designed central cone, rotary top cone can dispense the products into each linear feeder pans evenly. Rotary rollers equipped between each linear feeder pan helps to dispense the long soft products into feed hoppers. It is suitable for weighing soft and material, such as cheese,jelly candy etc. |
| Max. Capacity(g) | 100 - 1000g |
| Weighing Accuracy | ± 1 - 5g |
| Max. Weighing Speed | 50Bags / Min |
| Hopper Volume | 1.6L |
| Control Panel | 7"LCD Touch Screen |
| Driving System | Step Motor |
| Power Requirements | 220V / 1500W / 50/60HZ / 10A |
| Dimension(mm) | 1620 ( L ) × 1100 ( W ) × 1100 ( H ) |
| Weight | 380KG |
| Name | Dip angle style elevator |
| Model No. | SL - 350 |
| Operational Throughput | 6 cubic / h |
| Voltage | 220V / 380V |
| Power | 2KW |
| Name | Finished Product Conveyor |
| Model No. | SLIV-1000 |
| Material | 304SS |
| Conveying height | 800mm |
| Throughput | 50 - 300mm/s |
| Power | 250W |
| Dimension | 2190L* 437W * 1050H |
