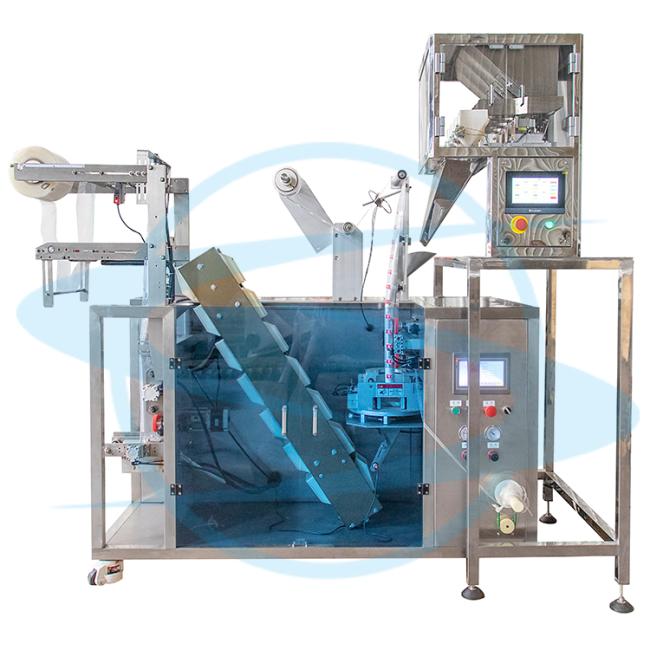

Triangle Small Pyramidal Bag Tea Packing Machine For Herbal Rose
Triangle Small Pyramidal Bag Herbal Rose Tea Packing Machine
Application
This machine is mainly for packing various kind of tea product, which can make triangle shape tea bag and flat tea bag, sealing and forming by ultrasonic sealing, speed for only inner bag can reach 40-50 bags/min. Tea bag material can be Nylon, PLA mesh or PLA non woven fabric).
1 ,The machine is suitable for green tea, black tea, scented tea, coffee, Chinese tea, health tea, herbal tea, granule.
2 ,Outer sealing paper is controlled by the stepper motor,stable bag length and accurate positioning
3 ,The machine can automatically finish
the load, measuring, bag making,sealing, cutting, counting, finished product conveyor, and other functions.
4 ,Adopt the importedultrasonic sealing, use the electronic scale metering to cutting-stock, perfect sealing,cutting-stock accuracy
5 ,Packing material: filter paper,thread,composite membrane
Tea Bag Packing Machine Specification
| Unwind quantity | 1 piece |
| Particle content | ≤ 2 ± 0.5 g / bag ( other specifications can be customized ) |
| Packaging material requirements | Inner bag: Nylon, non-woven fabric, corn fiber and other ultrasonic heat-sealable materials Outer bag : heat-sealable composite film |
| Production speed | Triangle bag inner and outer bag 20-45 bags/min (specifically according to the material) |
| Tea bag size | Inner bag : 58 * 60 (140mm) Outer bag: 80 * 90mm Inner bag : 68 * 70 (160mm) Outer bag: 90 * 100mm Inner bag : 80 * 80 (180mm) Outer bag: 100 * 110mm |
| Unwinding outer diameter | ≤ Φ400㎜ |
| Inner diameter of unwinding paper core | Φ76㎜ |
| Air pressure | ≥ 0.6Mpa ( gas supply guaranteed by the customized party ) |
| Electric power of the motor in the machine | About 3.5 Kw ( 220V ) |
| Equipment appearance | About L 1800 * W 900 * H 1800 ( mm ) |
| Equipment weight | About 50kg |
