1920Hz Naked Eye 3d Led Screen P4 Outdoor Led Billboard 80x40 Dots
1920Hz Naked Eye 3d Led Screen P4 Outdoor Led Billboard 80x40 Dots
Double Pillar Type The Naked-Eye 3d Hi Tech Outdoor Digital Display Signs
Product description
1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.

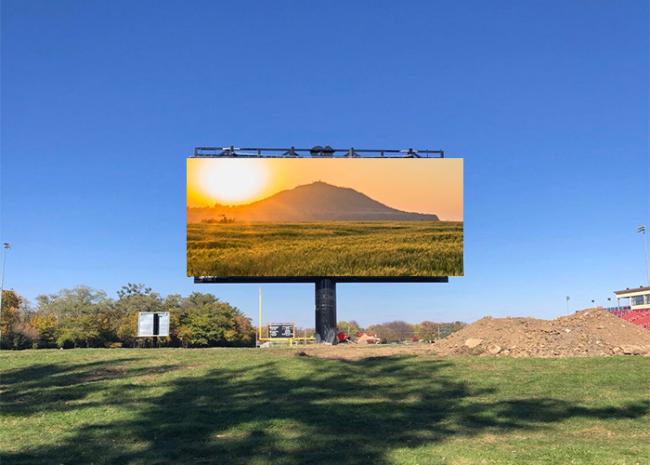

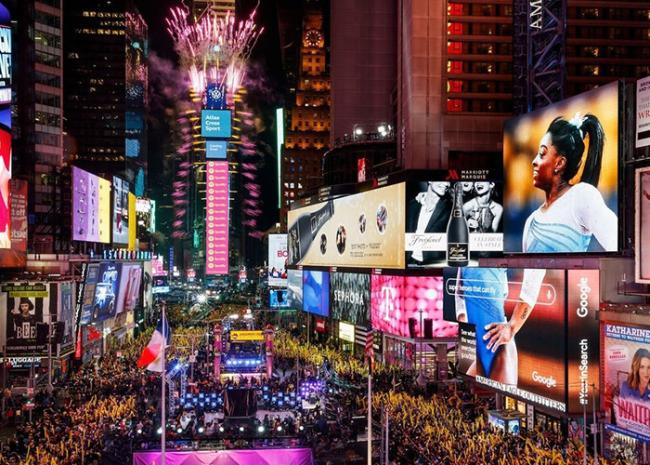

2. Outdoor and indoor advertising, digital billboards, advertising companies.
3. With sensitive control system, it can adjust screen brightness automatically according to the lighting change of indoor and outdoor, saving energy to reduce your operating costs greatly.
4. The advertising contents can be changed at any time, for different customers and various advertisements.
5. High protection level IP65.
6. High Brightness,dedicated visibility of image even under strong direct Sunlight.
7. The most advanced automated production equipment and professional team, selection of first-class raw materials, strict raw materials and process control. led screen billboard
| Pixel Pitch | 4mm | |||
| LED Lamp | SMD1921 | |||
| LED configuration | SMD 3 in 1 | |||
| Module Size | 320mm x 160mm | |||
| Module pixels | 80x40 dots | |||
| Cabinet Size(WxHxD)(mm) | 960x960x108mm | |||
| Module Quantity(pcs) | 18 | |||
| Cabinet resolution WxH | 240x240dots | |||
| Cabinet Material | magnesium alloy | |||
| Cabinet Weight (kg) | 29 | |||
| Average Power/sqm (watts) | 240 | |||
| Max Power/sqm(watts) | 800 | |||
| Brightness | 6000cd/㎡ | |||
| Viewing Angle | H:160°, V:120° | |||
| Best Viewing Distance | 4-200 meters | |||
| Brightness Control | 256 level | |||
| Gray scale | 14 bit | |||
| Refresh frequency | 1920hertz | |||
| Driving mode | 1/10 scan | |||
| Input power frequency | 50 or 60 Hertz | |||
| Input Voltage | 110 ～ 240 Volt,60Hz | |||
| Blind spot rate | ＜1/10000 | |||
| Lifetime at 50% brightness | 100000 hours | |||
| Ingress Protection | IP65 | |||
| Operating temperature | ﹣20 ～﹢60 ℃ | |||
| Operating humidity | 10％ ～ 90％ | |||
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km | |||
| Signal input format | HDMI,DVI,SDI,VGA etc. | |||
| Operating system | Windows (2000/XP/Vista/7/8/10) | |||
FAQ
Q1:What’s the function?
A1:Support various formats,like VGA,Video,AVI,DAT,etc.
Q2:LED display modules are generally expressed in PX,such as P2 P3 P4...P8 P10,what does this mean?
A2:P3 P4...P8 P10 means that the pixel pitch is 3mm 4mm...10mm,which determines resolution of a display.Pixel pitch smaller,led resolution higher.
Q3:What pixel pitch should I choose on my display?
A3:It’s mainly depends on the viewing distance,the size of the display screen,the desired effect the application scenario and the customer budget.
Q4:How to in stall?
A4:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,free remote debugging.We can also send our engineers to the site to guide the installation if needed.
Q5:What about your quality?
A5:The quality of our display is excellent.We use the materials of high quality suppliers.strictly control the production process,and pass the multiple quality inspection to ensure that every product is qualified.
Q6:How about the warranty?
A6:Two years warranty
Q7:What kind of display we provide?
A7:We have indoor/outdoor/rental/Advertising/transparent and poster LED display for your choice
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
