P8 Football Stadium outdoor perimeter led display Full Color 3840HZ
P8 Football Stadium Outdoor Perimeter Led Display Full Color 3840HZ
Full Color High Definition P8 Football Stadium Perimeter Led Screen
Product description
1. Considering that the players are fast and the impact is strong, the players and the fence screen must be protected. Therefore, a soft mask is used in the design to effectively protect the screen and internal structure; secondly, the LED stadium screen is installed on the top of the screen. Soft cushion, in case the player collides with the screen, it not only protects the player's body, but also ensures that the screen can play normally
2. Outdoor led fence screens need to withstand harsh environments such as sun exposure, rain, high and low temperature changes, ultraviolet rays, earthquake resistance, typhoons, etc., so the protection level is at least IP65 or more, so the production process is relatively complicated to ensure the quality of the led stadium display Stability and safety.
3. Air box packaging, moisture-proof and dust-proof, save space, and save time and effort for on-site transportation.
4. From the overall layout of PCB design, the product strictly follows the design standards of EMC testing, and has the performance that can withstand higher standards of electromagnetic compatibility testing. Every detail is to improve the overall stability of the display device.
5. With sensitive control system, it can adjust screen brightness automatically according to the lighting change of indoor and outdoor, saving energy to reduce your operating costs greatly.

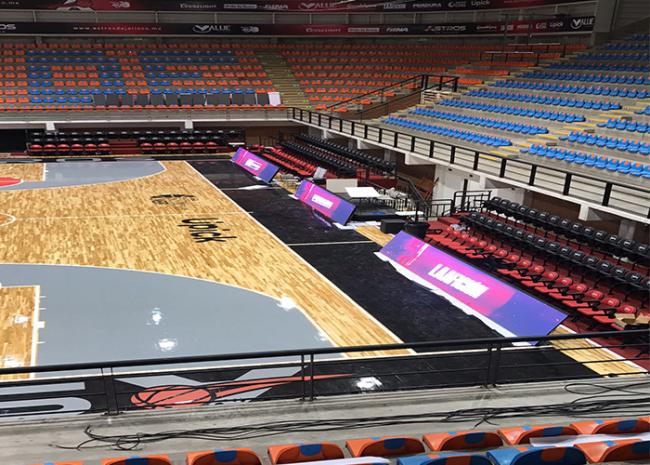

6. Meet a variety of fence screen applications: football, ice hockey, basketball.
| Pixel Pitch | 10mm | |||
| LED Lamp | SMD3535 | |||
| IC | ICN2037 | |||
| Module Size | 320x160mm | |||
| Module pixels | 32x16dots | |||
| Cabinet Size(WxHxD)(mm) | 960x960x108 mm | |||
| Module Quantity(pcs) | 18 | |||
| Cabinet resolution WxH | 96x96dots | |||
| Cabinet Material | Aluminum die casting | |||
| Cabinet Weight (kg) | 29 | |||
| Average Power/sqm (watts) | 240 | |||
| Max Power/sqm(watts) | 800 | |||
| Brightness | 7000cd/㎡ | |||
| Viewing Angle | H:160°, V:120° | |||
| Best Viewing Distance | 10-200 meters | |||
| Brightness Control | 256 level | |||
| Gray scale | 16 bit | |||
| Refresh frequency | 3840hertz | |||
| Driving mode | 1/2 scan | |||
| Input power frequency | 50 or 60 Hertz | |||
| Input Voltage | 110 ～ 240 Volt,60Hz | |||
| Blind spot rate | ＜1/10000 | |||
| Lifetime at 50% brightness | 100000 hours | |||
| Ingress Protection | IP65 | |||
| Operating temperature | ﹣20 ～﹢60 ℃ | |||
| Operating humidity | 10％ ～ 90％ | |||
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km | |||
| Signal input format | HDMI,DVI,SDI,VGA etc. | |||
| Operating system | Windows (2000/XP/Vista/7/8/10) | |||
FAQ
Q1: Is the product customizable?
A: Yes,we can customize the product according to customers' needs, you just need to provide the requirements details.
Q2: Do you test all your goods before delivery?
A: Yes,we have 100% test before delivery.
Q3:What is your terms delivery?
A: EXW,FOB, CFR, CIF, DDP, DDU...
Q4: How about your warranty?
A: Different product offer different time frame warranty, but all product here we offer 2year at least warranty.
Q5: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
