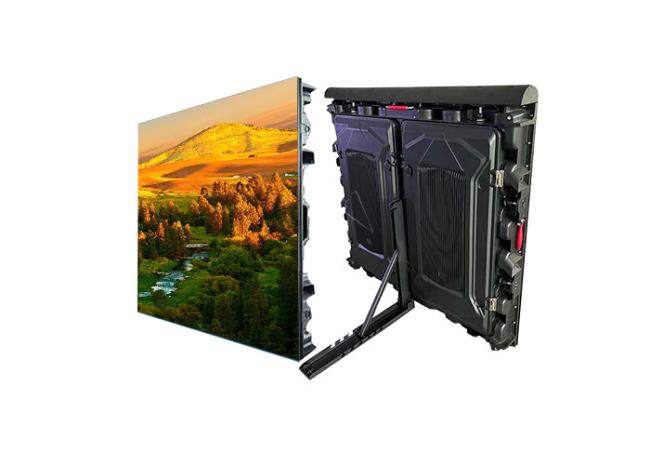

Perimeter Video Football Stadium LED Display 960X960mm P5 P6.67 P8 P10
Football Stadium Perimeter Video Led Display Cabinet 960X960mm P5 P6.67 P8 P10 Stadium Screen
Product description
1. Large-scale stadiums, sports centers, basketball courts (halls), football fields and other occasions.
2. The outdoor soft-mask HD stadium LED display has a series of advantages such as high brightness, high definition, wide viewing angle, and long-distance viewing distance, with strong visual impact. It is used to scroll video advertisements and bring a visual experience to the audience.
3. The cabinet adopts an adjustable tilt angle design, which can adjust the appropriate tilt angle (75°-90°) according to different environmental requirements, which can meet the viewing needs of on-site audiences.
4. Large-scale stadiums, sports centers, basketball courts (halls), football fields and other occasions.
5.The cabinet adopts an adjustable tilt angle design, which can adjust the appropriate tilt angle (75°-90°) according to different environmental requirements, which can meet the viewing needs of on-site audiences.
6. The stadium screen uses a soft mask and a soft material covering the upper part, which can protect the LED lamp beads and avoid obvious injuries caused by collisions.
| Pixel Pitch | 8mm | |||
| LED Lamp | SMD3535 | |||
| IC | ICN2037 | |||
| Module Size | 320x160mm | |||
| Module pixels | 40x20dots | |||
| Cabinet Size(WxHxD)(mm) | 960x960x108 mm | |||
| Module Quantity(pcs) | 18 | |||
| Cabinet resolution WxH | 120x120dots | |||
| Cabinet Material | Aluminum die casting | |||
| Cabinet Weight (kg) | 29 | |||
| Average Power/sqm (watts) | 240 | |||
| Max Power/sqm(watts) | 800 | |||
| Brightness | 6000cd/㎡ | |||
| Viewing Angle | H:160°, V:120° | |||
| Best Viewing Distance | 8-200 meters | |||
| Brightness Control | 256 level | |||
| Gray scale | 16 bit | |||
| Refresh frequency | 3840hertz | |||
| Driving mode | 1/5 scan | |||
| Input power frequency | 50 or 60 Hertz | |||
| Input Voltage | 110 ～ 240 Volt,60Hz | |||
| Blind spot rate | ＜1/10000 | |||
| Lifetime at 50% brightness | 100000 hours | |||
| Ingress Protection | IP65 | |||
| Operating temperature | ﹣20 ～﹢60 ℃ | |||
| Operating humidity | 10％ ～ 90％ | |||
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km | |||
| Signal input format | HDMI,DVI,SDI,VGA etc. | |||
| Operating system | Windows (2000/XP/Vista/7/8/10) | |||
FAQ
Q1:What is the control system? How is it?
A:We use Nova Taurus Series asynchronous control system. Support cluster play and managementSupportAPP/PhoneWIFIIpad/Laptop/PC/Cloud control. It's very easy and convenient to control.
Q2:What is your best service?
A:One to one sales engineer to customer responsibility system. We will do:
1. Know your proiect and provide the best solution for it
2. Track your order and let you know each step and detail of it:
3. Teachyou how to install and use the screen;
4. Care the subsequent use of your screen and ensure vour after -sales service be well
Q3:How about your delivery time?
A:Generally. it will take 15 to 25 days after receiving your advance payment. The spe- cific delivery time depends on the items and the quantity of your order.
Q4:How about your Warranty Term?
A:2-5year warranty. Structure design,installation problem,program the screen. how to use the screen... don't worry,we have professional after-sale team to solve your any questions after you placed an order. And your exclu-sive sales engineer will also help you get over any problems.
