10 Inch 110 IDC Network Patch Panels

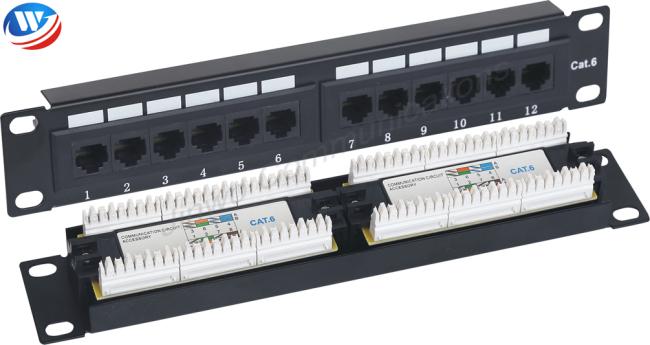

                 1U 10'' Inch 12 Port CAT6 UTP Rack Mount 110 IDC Type Patch Panel

Full Technical Specifications

1) Toolless and cabinet designed
2) Label and inlaid marks for convenience of identification and network management
2) Highly resistance and inflaming retarding material, Grade UL94-0
3) Connection strap to adopt gold plate,alloy of Cu and Be,IDC to use the alloy of Cu and P

1) Firm and easy installation reducing the installation and operation cost.
2) Transmission stability.
3) Module part is fitted with shield, protecting inner 1DC contact from irregular working in rugged environment
4) Meet or exceed the current T568A and T568B standard

Mechanical property
Times of repetitive use:≥800
Termipoint life:≥200
Insulation diameter:0.7mm-1.4mm(1.6mm)
Temperature interval:-40°C-70°C(storing)
-10°C-60°C(installation)
-10°C-60°C(working)

Application standard:
ISO/IEC11801:2002
IEC 60603-7-4(edition:1.02003-01-10)
IEC 60603-7-2(edition:1.02003-01-10)
EIA/TIA568B.2-1(2002de-embedded)
