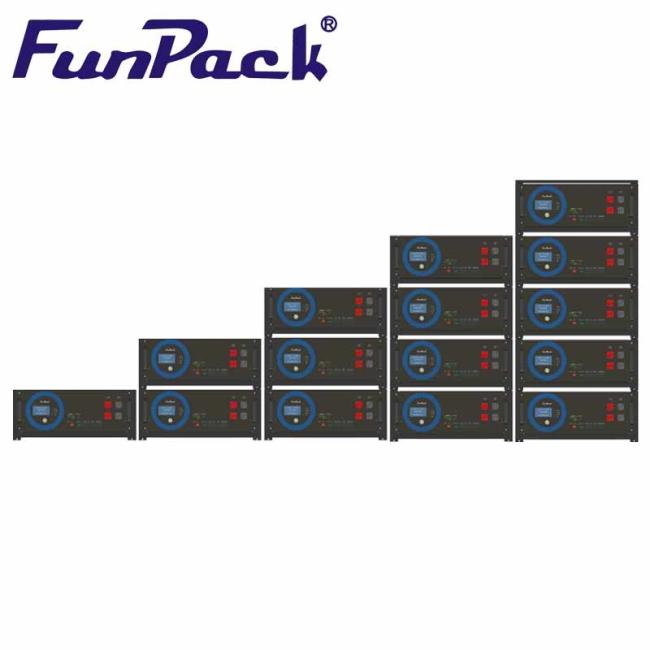

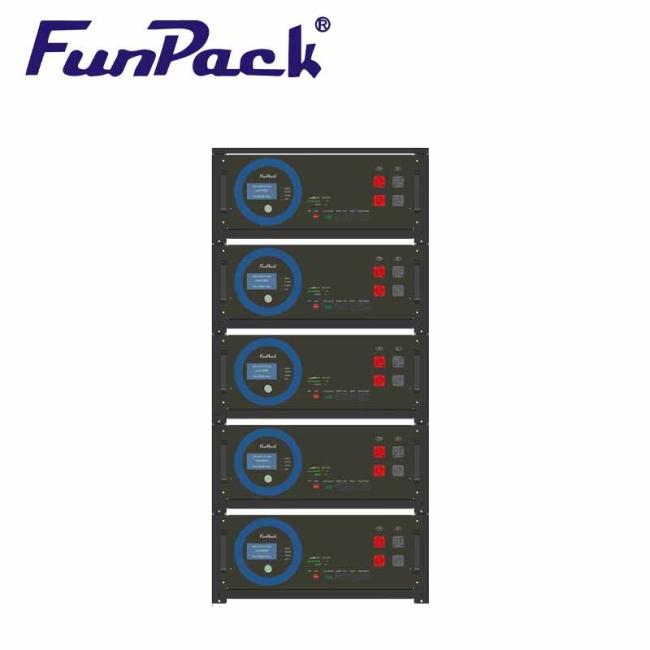

51.2V 135ah Rack Mounted LFP Energy Storage Battery 6000 Times Lifecycle IP65
LifePO4 batteries and its benefits:
NLP LifePO4 battery is superior compared to lead acid batteries in following features
1.0 Degree charging cut off, designed with full protection.
2.1/2 Lower weight, high energy density.
3.1 Hour Fast Charging
4.Longer life, up to 4000 cycles.
5. 5 Years quality warranty.
6. 100% Power discharge without harm battery
Product Basic Information Of Rack Mounted LEP Energy Storage Battery:
| Technical Parameters | |||||
| Model | FP05-4U | FP05-4U | FP05-4U | FP05-4U | FP05-4U |
| Battery Type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Energy | 6.912KWh | 13.824KWh | 20.736KWh | 27.648KWh | 34.56KWh |
| Capacity | 100AH | 200AH | 300AH | 400AH | 500AH |
| Rated Voltage | 51.2V | 51.2V | 51.2V | 51.2V | 51.2V |
| Working Voltage Range | 40~58.4V | 40~58.4V | 40~58.4V | 40~58.4V | 40~58.4V |
| Max charge current | 100A | 100A | 100A | 100A | 100A |
| Max discharge current | 100A | 100A | 100A | 100A | 100A |
| Standard charging current | 100A | 100A | 100A | 100A | 100A |
| Standard discharge current | 100A | 100A | 100A | 100A | 100A |
| DOD | 100% | 100% | 100% | 100% | 100% |
| Max string parallel number | 15 | 15 | 15 | 15 | 15 |
| Lifecycle | 6000 times | 6000 times | 6000 times | 6000 times | 6000 times |
| Operating Temperature | Charge:0~60ºCDischarge:-10~60ºC | ||||
| Operation Humidity | 5~95% | 5~95% | 5~95% | 5~95% | 5~95% |
| Nominal Operation Altitude | <3000m | <3000m | <3000m | <3000m | <3000m |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 |
| Warranty period | 5 | 5 | 5 | 5 | 5 |
| Communication | MSDS UN383 | MSDS UN383 | MSDS UN383 | MSDS UN383 | MSDS UN383 |
| Certification | / | / | / | / | / |
| Net weight | ≈50KG | ≈50KG | ≈50KG | ≈50KG | ≈50KG |
| Dimension(L*W*H) | 574*482.6*177mm | 574*482.6*177mm | 574*482.6*177mm | 574*482.6*177mm | 574*482.6*177mm |
| Rack size(L*W*H) | 519*409*1087mm | 574*482.6*177mm*2 | 574*482.6*177mm*3 | 574*482.6*177mm*4 | 574*482.6*177mm*5 |
Main Applications of Rack Mounted LFP Energy Storage Battery:
This product is mainly used for home energy storage system. Schools, restaurants, pizzerias, small factories, etc. can also be used.
