ASTM A653 Hot Dipped Galvanized Steel Sheet Coil Q195 Grade 50
Price:
$650-$780/TON
MOQ:
TONS
Delivery Time:
5-14days
Brand:
Jiameng
Product Description

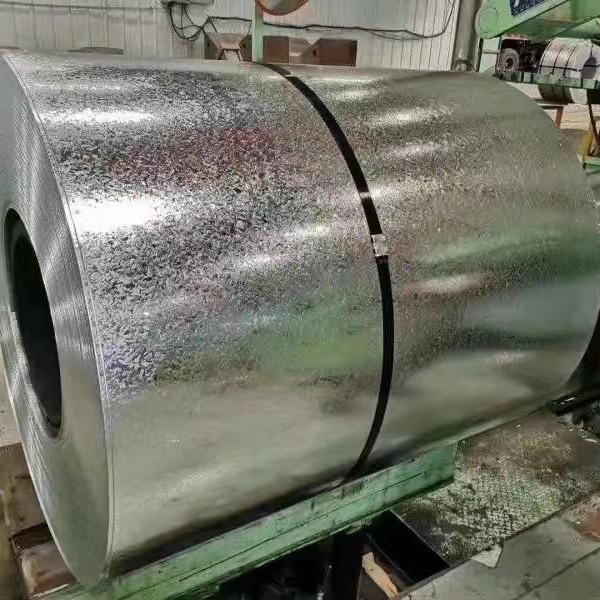

| Hot dipped galvanized steel sheet & coil is made of carbon steel coated in zinc utilizing the hot-dip process. The end result of this process is a layer of zinc on each side of the steel sheet or coil that is tightly adhered to the steel through the formation of an iron-zinc alloy bonding layer. This bonding layer is formed by a diffusion process while the heated steel is in contact with molten zinc. |
| Standard | astm a526 a528 a444, a653, jis g3302, en10142 en1012, etc |
| Grade | DX51D+Z, DX52D+Z, DC52D+Z, DC51D+Z, S350GD+Z, G550, SGCC, DD52D+Z etc |
| Thickness | 0.12-3.0mm (customize, above 3.0mm available) |
| Width | 600-2000mm (customize) |
| Length | as customer requirements |
| Coil inner diameter | 508mm/610mm (customize) |
| Zinc coating | 20-600g/m2 |
| Raw material | cold rolled base. (hot rolled base also available) |
| Technique | hot dipped. |
| Coil weight | 3-8 tons |
| Tolerance | thickness +- 0.02 or +- 0.04, width +-5mm |
| Spangle type | zero spangle, small spangle, regular spangle, big spangle |
| Surface treatment | chromated/non-chromated, oiled/non-oiled, anti-fingerprints |
| Certification | CE, ISO9001-2008, SGS |
| Monthly output | 17000 tons |
| Packaging | 3 layers. kraft paper outside + water-proof plastic film in the middle + steel plate covered with strips outside |
| Landing port | qingdao/shanghai/tianjin port |
| Payment terms | T/T |
| Delivery time | it takes about 10 days for stock goods, or it will need 15-25 days if goods need to be customized |
| MOQ | as customer needs. reminder: more quantity reduce your purchase cost greatly |
| Inspection | third-party test |
| Cooperate brand | anshan steel, baotou steel, jiangsu shagang etc |
| Usage | Grade | Yield Strength (MPA) | Tensile Strength (MPA) | Elongation rate % |
| Punching galvanized steel | DX51D+Z | ~ | 270-500 | >=20 |
| DX52D+Z | 140-300 | 270-420 | >=22 | |
| DX53D+Z | 140-260 | 270-380 | >=26 | |
| DX54D+Z | 140-220 | 270-350 | >=30 | |
| Structure galvanized steel | S220GD+Z | >=220 | >=300 | >=18 |
| S250GD+Z | >=250 | >=330 | >=17 | |
| S280GD+Z | >=280 | >=360 | >=16 | |
| S320GD+Z | >=320 | >=390 | >=15 | |
| S350GD+Z | >=350 | >=420 | >=14 | |
| S400GD+Z | >=400 | >=470 | ~ | |
| S500GD+Z | >=500 | >=530 | ~ | |
| S550GD+Z | >=550 | >=560 | ~ |
Dongmeng Steel provides high-quality hot-dip galvanized steel coils and electro galvanized coils. As a very cost-effective building material and decorative material with cheap price and high corrosion resistance, our products are sold all over the world, favored by local customers, and also promote the development of the local economy. Friends from all over the world welcome you to buy our products!
