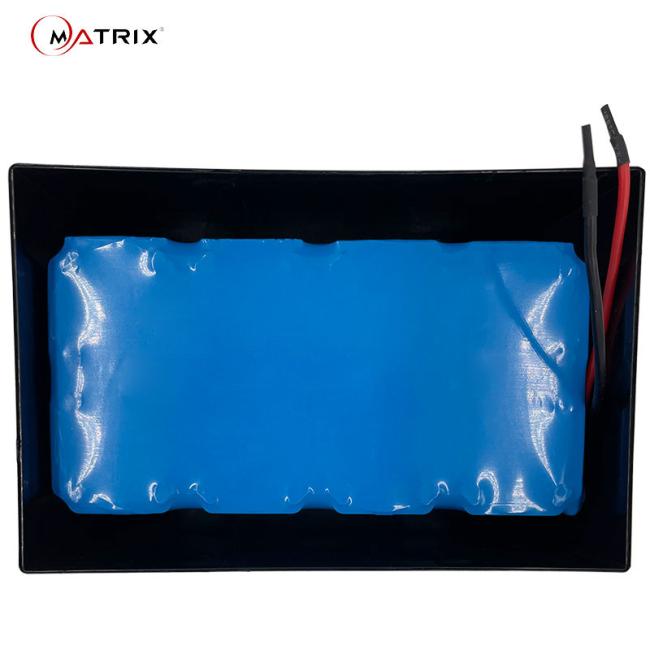

12v 12ah Rechargeable Lifepo4 Battery For Lead Acid Battery Replacement
Lifepo4 Battery 12v12ah For Lead Acid Battery Replacement
ADVANTAGE:
Longer Life: MATRIX LiFePO4 battery provides 3000 cycles compared to 200 - 500 cycles & a 3 years life time of typical Lead Acid Battery.
Lighter weight: MATRIX LiFePO4 battery's weight is 1/3 of Lead Acid Battery , which makes it is disputable choice for RVs, Marine and Off-Grid applications when towing or mobility is in the consideration.
SPECIFCIATIONS:
| Electrical Characteristics | Nominal Voltage | 612.8v |
| Nominal Capacity | 12ah | |
| Energy | 144wh | |
| Internal resistance | ≤35mΩ | |
| Cycle Life | >3000 cycles @ 0.2c charge/ discharge at 100%DOD,End of life 70% capacity | |
| Months Self discharge | ≤3.5% per month at 25℃ | |
| Standard Charge | Charge voltage | 14.6±0.2V |
| Charge Mode( CC/CV) | At 0℃~45℃ temperature, charged to 14.6v at constant current of 0.2C5A, and then, changed continuously with constant voltage of 14.6v until the current was not more than 0.02C5A | |
| Charge current | 2.4A | |
| Max.Charge current | 6A | |
| Standard Discharge | Discharge current | 4.8A |
| Max.continuous current | 10A | |
| Discharge cut-off voltage | 10.0V | |
| Environmental | Charge Temperature | 0℃ to 45 ℃ |
| Discharge Temperature | -20℃ to 60 ℃ | |
| Storage Temperature | 0℃ to 45 ℃ | |
| Mechanical | Cell & Method | IFR32700, 4S2P |
| Plastic Case | ABS | |
| Dimension (L*W*H*TH) | 152*65*94mm | |
| Weight | Approx. 1.4KG | |
| Terminal | T2 |
Battery Features:
1. High operation voltage.
2. High energy density.
3. Long cycle life, more than 3000 charge/discharge cycles ( 80% capacity remained ).
4. Minimal self-discharge, less than 10% monthly.
5. Wide temperature range, operation from :-20°C~+60°C
6. Be charged & discharged at anytime because of non-memory.
7. Environmentally compatible.
8. High level of safety, vision Lithium ion batteries catch no fire and cause no explosion in breaking experiment, with acupuncture, smash, drop, and so on.
Our Service:
1. We will test all product before shipping.
2. Samples time:7-15days,order time:around 30days
3. All inquiries will be replied within 24 hours
4. OEM&ODM,also provide customized service.
5. Distributorship is available for your unique design and some our current models.
FAQ
Q1: Can we have a sample order?
Yes, we welcome sample to test the quality, customized is available.
Q2:What's the delivery time?
Sample goods will take 1-3 days, mass products will take 10-20 days, it depends on the order quantity.
Q3Where can I get the price?
we will quote the price within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or
tell us in your email so that we will regard your inquiry priority.
Q4: What about the after-sale service?
We can offer our customers 5 years guarantee. If tere are any problems for the goods, we will offer you the positive
