WiFi DC24V 2.5A Direct Line Thermal Receipt Printer 260mm/Sec
3 Inch Thermal Receipt Printer , USB Serial Ethernet 80mm POS Direct Thermal Receipt Printer Support Cash Drawer
Product Description:
This is a 80mm thermal receipt printer ,the paper width allow 80mm and valid print width reach 72mm .the auto cutter help end users remove the printed receipt easily,and the fast printing speed improved print efficiency ,it is an idea thermal printer for POS ,kitchen.
Product Features:
Simple and elegant, with high optical mirror and sticks appearance
Easy paper loading, with auto cutter, full cut/partial cut optional
260mm/s high printing speed, rapidly change supplies, improve work efficiency
With auto cutter, paper out alarm
Parallel, serial, USB, Ethernet Optional multiple interfaces (supports two in one, or three in one)
Paper end sensor, paper near end sensor (for flat)
Support flat, wall-mount
Low noise, support high speed graphics and hardware fonts printing
Product Specification:
| Interfaces | Serial / USB / Parallel / Ethernet / Bluetooth / WIFI (optional) |
| Print Comand | ESC/POS |
| Print Method | Thermal Line Printing |
| Pirnt Speed | 260mm/sec |
| No. of Total Dots | 512 dots/Line |
| Auto Paper Cutter | Full or Partial cut |
| Print Width | 72±0.5mm |
| Print Font | 12 x 24; 24x 24 |
| Character Set | Alphanumeric /Chinese Kanji |
| NV Flash | 256K bytes |
| Compatible OS | Window Systems ; Android & IOS Operate Systems |
| Paper | |
| Type | Roll Paper |
| Width | 79.5±0.5mm |
| Roll Diameter | 83mm |
| Paper Thickness | 0.06-0.08mm |
| Electrical | |
| Adapter Voltage | DC24V/2.5A |
| Cash Drawer Control | 12V/1A |
| Print Head | Reliability |
| Print Reliability | 100km |
| Physical | |
| Dimension | 18.6*14.5*14cm |
| Unit Weight | 2.3kgs(with accessories) |
| Pieces Per CTN | 8 Pieces |
| Color | Black and White |
| CTN Dimension | 51.6*48.7*37.4cm |
| Carton Weight | 19kgs |
| Environmental | |
| Temperature | Working: 0 to 45 Degrees |
| Humidity | Working: 10%-80% |
| Warantty | 12 months at least |

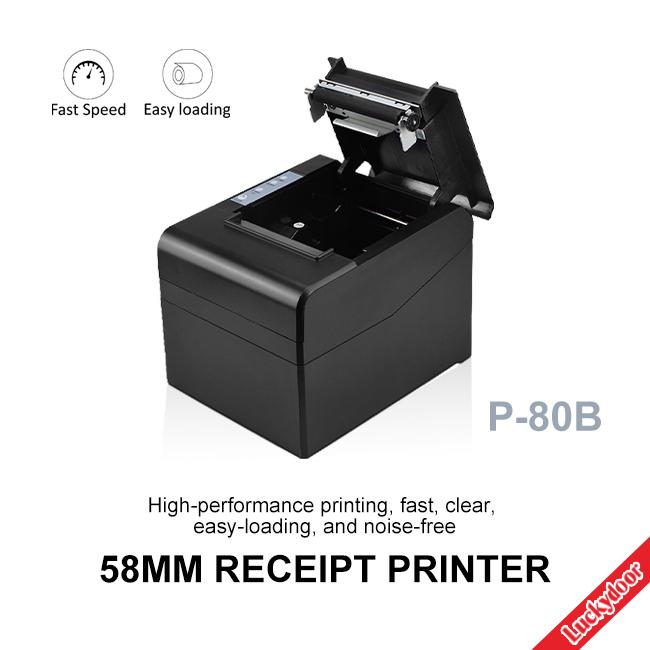

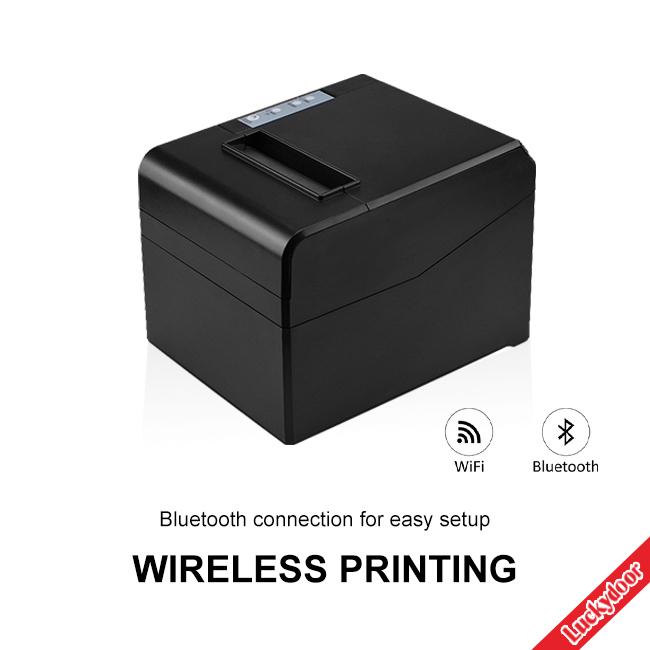

Product Pictures:

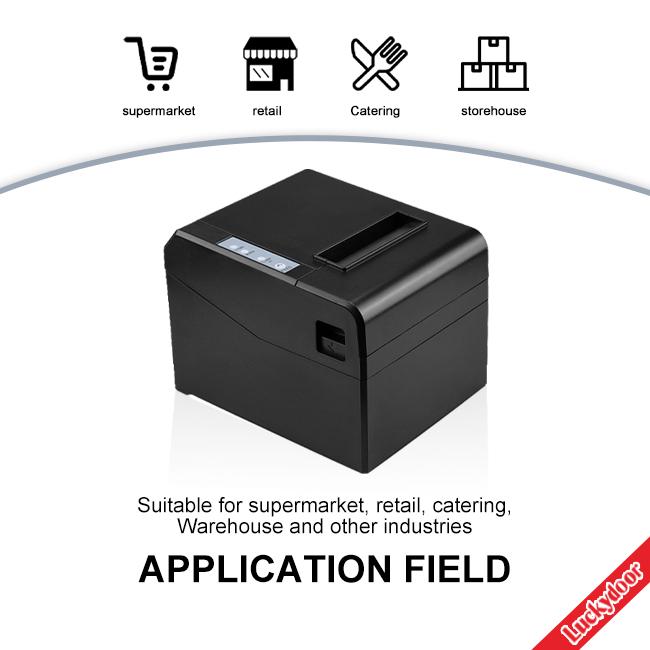

Product Application:
Kitchen
Front reception desk
Point of sales
Clothing and shoes store
Supermarkets
Convenience stores
FAQ:
1, What is the print resolution of this 80mm desktop thermal printer?
Its resolution is 512 dots/Line
2, Does this 3 inch thermal receipt printer support ESC/POS print command?
Yes ,it is support ESC/POS print command ,and SDK is available
3, What about the printing speed of this direct thermal printer ?
Its print speed up to 260mm/s
