30FPS/S Superfast Supermarket Presentation Barcode Scanner 1D 2D QR
Super Fast Hand-Free 1D 2D QR Bar Code Scanner ,Supermarket Presentation Barcode Scanner With USB
Product Description:

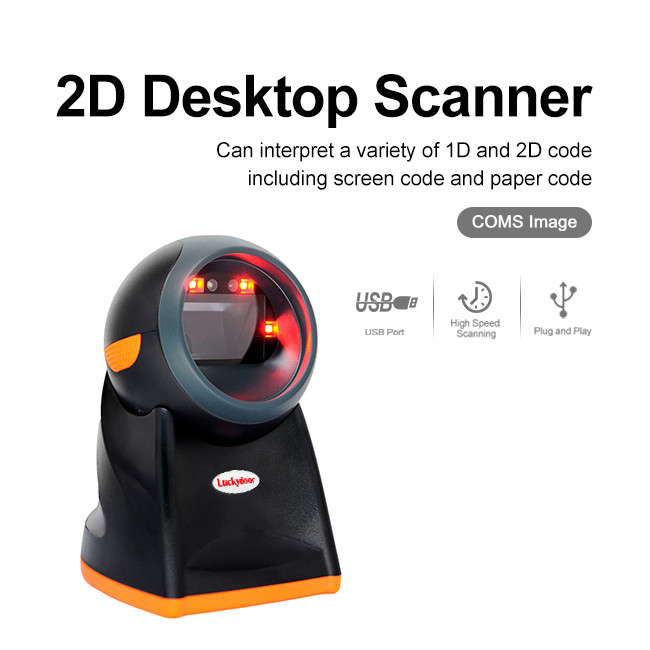

K-926 is one hands free 2D omni-directional imaging barcode scanner, which is designed for decoding all standard 1D/2D barcodes. With larger angles,adjustable omni-directional scanning head meets various needs, no need to align bar code and scanner, it is suitable for retail ,point of sales ,library etc
Product Features:
• Wide field-of-view, Omni-directional scanning capability.
• 300,000 pixels global shutter, with great speed and precision.
• Fast decoding speeds at 30 FPS/s.
• Minimum resolution: 4 mils (3mils supports customization.)
• Easily read the paper, plastic, mobile phones, LCD displays barcodes
• Comfortable red LEDs for illuminating scanning surfaces.
• Read all mainstream 1D&2D barcodes.
Product Specification:
| Performance Parameters | ||||
| Light Source | Red LED (lighting) color temperature 650nm LED | |||
| Supported symbologies |
1D: UPC, EAN, Code 39(with full ASCII), Codabar, Code 128, Code 93, Code 11, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, MSI-Plessey, GS1 DataBar, etc. 2D: PDF417, Data Matrix, QR Code, etc. |
|||
| Scan Mode | Continuous/Automatic Induction Scanning | |||
| Scan Speed | 60 fps | |||
| Mobile tolerance | 1 meters/second | |||
| CPU | 32bit MIPS@1G Hz | |||
| Precision | ≥4mil | |||
| Bit Depth of field | 0-150mm@(13mil UPC/EAN 100%, PCS=90%) | |||
| Field of View | Yaw 360°, Rotation ±60°, Pitch ±65° | |||
| Press the key | Can switch to read only 1D bar code by pressing the key | |||
| Indicator | LED, Speaker | |||
| Interface | USB-HID, USB-COM, RS232 | |||
| Physical Parameters | ||||
| Dimensions | 150mm*108mm*96mm | |||
| Weight | 277.3g | |||
| Material | ABS+PC | |||
| Cable Length | 2m | |||
| Environmental Parameters | ||||
| Operating Temperature | 0℃ ~ 50℃ | |||
| Storage Temperature | -40℃ ~ 70℃ | |||
| Humidity | 0% to 95% RH(Non-condensing) | |||
| Shock Resistance | Withstands multiple times 1.5 meters drops to concrete | |||
| Electrical Parameters | ||||
| Working Voltage | DC5V ±5% | |||
| Max Power Consumption | Working current 130mA | |||
Product Pictures:
Product Application:
retailing
supermarkets
tobacco
logistics and transportation
health care and hospital
clothing and shoes stores
FAQ:
1, 1,OEM/EDM sevice available ?
Yes, OEM/EDM are available, our factory supports LOGO label customize.
2,What's the Lead time?
It is up to quantity and requirement, standard 3-5 working days
3, What payment methods your company accept?
We accept most of the payment methods, but mainly accept Paypal, Western Union, TT, Bank account.
