SS304 Stainless Steel Hex Socket Button Head Screws ISO3506-1 Metric A2-70
Price:
0.01usd-0.2usd/pc
MOQ:
100pcs
Delivery Time:
2-15 work days
Brand:
XGFH
Product Description
Metric 18-8 Stainless Steel Button Head Hex Drive Screws
Product Description:
Made from 18-8 stainless steel, these button head screws have good chemical resistance and may be mildly magnetic.
Length is measured from under the head.
Passivated stainless steel screws provide added protection against oxidation and corrosion.
Product specifications:

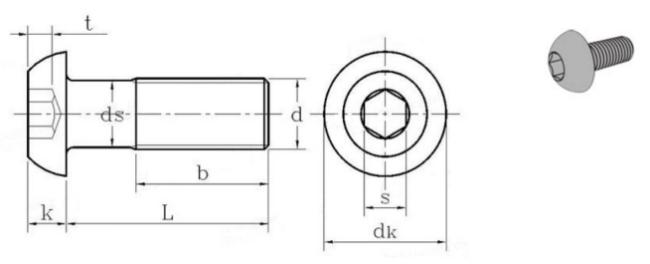

| Hexagon socket button head screws | ||||||||||||
| ISO 7380-1-2011 | ||||||||||||
 |
||||||||||||
| d | P(mm) | b(mm) | ds(mm) | dk(mm) | k(mm) | s(mm) | t(mm) | |||||
| min | max | min | max | min | max | Nom | min | max | min | |||
| M3 | 0.5 | 18 | 2.86 | 3 | 5.4 | 5.7 | 1.4 | 1.65 | 2 | 2.02 | 2.08 | 1.04 |
| M4 | 0.7 | 20 | 3.82 | 4 | 7.24 | 7.6 | 1.95 | 2.2 | 2.5 | 2.52 | 2.58 | 1.3 |
| M5 | 0.8 | 22 | 4.82 | 5 | 9.14 | 9.5 | 2.5 | 3 | 3 | 3.02 | 3.08 | 1.56 |
| M6 | 1 | 24 | 5.82 | 6 | 10.07 | 10.5 | 3 | 3.3 | 4 | 4.02 | 4.095 | 2.08 |
| M8 | 1.25 | 28 | 7.78 | 8 | 13.57 | 14 | 4.1 | 4.4 | 5 | 5.02 | 5.14 | 2.6 |
| M10 | 1.5 | 32 | 9.78 | 10 | 17.07 | 17.5 | 5.2 | 5.5 | 6 | 6.02 | 6.14 | 3.12 |
| M12 | 1.75 | 36 | 11.73 | 12 | 20.48 | 21 | 6.24 | 6.6 | 8 | 8.025 | 8.175 | 4.16 |
| M16 | 2 | 44 | 15.73 | 16 | 27.48 | 28 | 8.44 | 8.8 | 10 | 10.025 | 10.175 | 5.2 |
