Alloy Steel High Strength Flat-Tip Set Screws


Product Description:


This standard includes all specifications of International Standard ISO4026.

Hexagon socket set screws with flat points with metric dimension and thread diameters from M1.6 up to and including M24.

Product Features:

The tip makes good contact on flat surfaces and allows you to make frequent adjustments with minimal surface damage. Length listed is the overall length.

The flat point is designed for use in assembles in which frequent removal of the screw is required and damage to the mating surface must be minimized.

Black-oxide alloy steel set screws resist corrosion in dry environments.

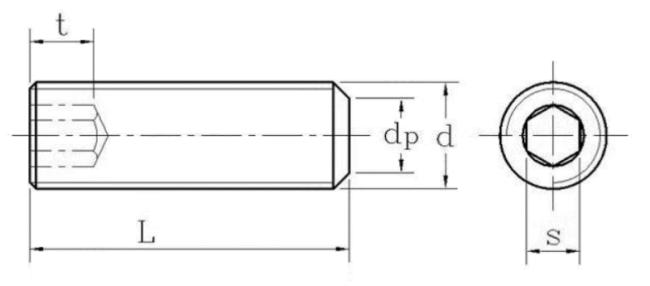

Product Drawing:

Hexagon socket set screws with flat point
DIN 913-1980
d(mm)	P(mm)	s(mm)			t(mm)
		Nom	min	max	min
M1.4	0.3	0.7	0.711	0.724	0.6
M1.6	0.35	0.7	0.711	0.724	0.7
M1.8	0.35	0.7	0.711	0.724	0.8
M2	0.4	0.9	0.889	0.902	0.8
M2.5	0.45	1.3	1.27	1.295	1.2
M3	0.5	1.5	1.52	1.545	1.2
M4	0.7	2	2.02	2.045	1.5
M5	0.8	2.5	2.52	2.56	2
M6	1	3	3.02	3.08	2
M8	1.25	4	4.02	4.095	3
M10	1.5	5	5.02	5.095	4
M12	1.75	6	6.02	6.095	4.8
M14	2	6	6.02	6.095	5.6
M16	2	8	8.025	8.115	6.4
M18	2.5	10	10.025	10.115	7.2
M20	2.5	10	10.025	10.115	8
M22	2.5	12	12.032	12.142	9
M24	3	12	12.032	12.142	10



Production Workshop:



Product Warehouse:

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time for this Hex Socket Flat Point Set Screws?

A: Most of sizes are in stock,and the lead time is 3days.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.

If you have another question, please feel free to contact us.
