Product Description:

Phillips Oval Head Machine Screws

18-8 stainless steel pan head screws have good chemical resistance and may be mildly magnetic.

Length is measured from under the head.

For partially threaded screws thread length may vary from the minimum thread length published to fully threaded.

Passivated stainless steel screws provide added protection against oxidation and corrosion.

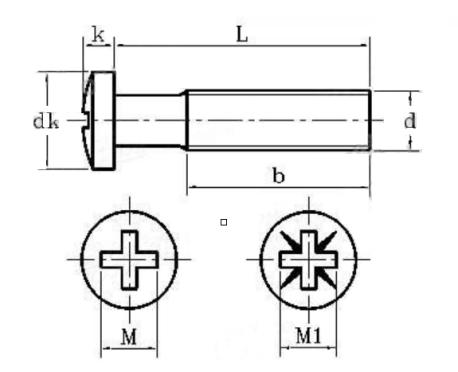

Drawing:

Cross recessed raised cheese head screws
DIN 7985-1990
d(mm)	P(mm)	dk(mm)		k(mm)			b(mm)	M	M1	Drive Size
		min	max	Nom	min	max	min
M1.6	0.35	2.9	3.2	1.3	1.18	1.42	15	1.8	1.8	O
M2	0.4	3.7	4	1.6	1.48	1.72	16	2.5	2.4	1
M2.5	0.45	4.7	5	2	1.88	2.12	18	2.7	2.6
M3	0.5	5.7	6	2.4	2.28	2.52	19	3.1	3
M3.5	0.6	6.64	7	2.7	2.58	2.82	20	4.2	4	2
M4	0.7	7.64	8	3.1	2.95	3.25	22	4.6	4.3
M5	0.8	9.64	10	3.8	3.65	3.95	25	5.3	5
M6	1	11.57	12	4.6	4.45	4.75	28	6.8	6.7	3
M8	1.25	15.57	16	6	5.85	6.15	34	9	8.8	4
M10	1.5	19.48	20	7.5	7.32	7.68	40	10.2	9.9

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time for this machine screw?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
