A4 70 316 M10 Stainless Steel Screws Nuts Bolts Allen Bolt Full Thread Socket Head Cap Screws DIN912

Product Description:

ISO4762/DIN912 A4-70 Stainless Steel Hex Socket Head Cap Screws Full Thread Allen Screw

ISO4762/DIN912 A4-70 Stainless Steel Hex Socket Head Cap Screws Full Thread Allen Screw Made In China.

Hex socket head cap screws are ideal for precision work with close tolerances and applications needing a well tooled appearance.

Hex socket head bolts supply greater tensile strength than equivalent Hex head bolts,while requiring less surface area to counterbore.

This stainless steel material resists corrosion even when submerged in salt water.

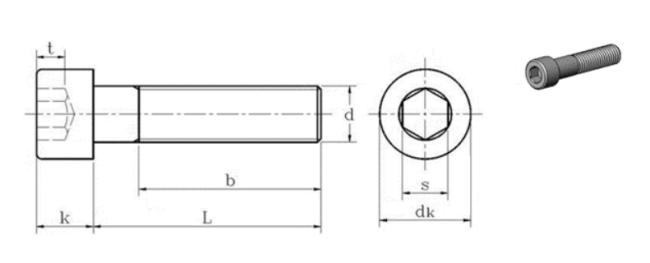

Product Drawing:

Hexagon socket head cap screws
DIN 912-1983
d(mm)	P(mm)	b(mm)	dk(mm)		k(mm)		s(mm)		t(mm)
			min	max	min	max	min	max	min
M1.4	0.3	14	2.46	2.74	1.26	1.4	1.32	1.36	0.6
M1.6	0.35	15	2.86	3.14	1.46	1.6	1.52	1.56	0.7
M2	0.4	16	3.62	3.98	1.86	2	1.52	1.56	1
M2.5	0.45	17	4.32	4.68	2.36	2.5	2.02	2.06	1.1
M3	0.5	18	5.32	5.68	2.86	3	2.52	2.58	1.3
M4	0.7	20	6.78	7.22	3.82	4	3.02	3.08	2
M5	0.8	22	8.28	8.72	4.82	5	4.02	4.095	2.5
M6	1	24	9.78	10.22	5.7	6	5.02	5.14	3
M8	1.25/1	28	12.73	13.27	7.64	8	6.02	6.14	4
M10	1.5/1.25/1	32	15.73	16.27	9.64	10	8.025	8.175	5
M12	1.75/1.5/1.25	36	17.73	18.27	11.57	12	10.025	10.18	6
M14	2/1.5	40	20.67	21.33	13.57	14	12.032	12.21	7
M16	2/1.5	44	23.67	24.33	15.57	16	14.032	14.21	8
M18	2.5/2/1.5	48	26.67	27.33	17.57	18	14.032	14.21	9
M20	2.5/2/1.5	52	29.67	30.33	19.48	20	17.05	17.23	10
M22	2.5/2/1.5	56	32.61	33.39	21.48	22	17.05	17.23	11
M24	3/2	60	35.61	36.39	23.48	24	19.065	19.28	12
M27	3/2	66	39.61	40.39	26.48	27	19.065	19.28	13.5
M30	3.5/2	72	44.61	45.39	29.48	30	22.065	22.28	15.5
M33	3.5/2	78	49.61	50.39	32.38	33	24.065	24.28	18
M36	4/3	84	53.54	54.46	35.38	36	27.065	27.28	19
M42	4.5/3	96	62.54	63.46	41.38	42	32.08	32.33	24
M48	5/3	108	71.54	72.46	47.38	48	36.08	36.33	28
M56	5.5/4	124	83.46	84.54	56.26	57	41.08	41.33	34
M64	6/4	140	95.46	96.54	63.26	64	46.08	46.33	38
M72*4	6/4	156	107.5	108.5	71.26	72	55.1	55.4	43
M80*4	6/4	172	119.5	120.5	79.26	80	65.1	65.4	48
M90*4	6/4	192	134.4	135.6	89.13	90	75.1	75.4	54
M100*4	6/4	212	149.4	150.6	99.13	100	85.12	85.47	60

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
