DIN 6923 Stainless Steel Hex Nuts A4 80 M4 M8 Serrated Hex Flange Nuts
Metric Super-Corrosion-Resistant 316 Stainless Steel Serrated Hex Flange Nuts
Product Description:
These flange nuts have excellent resistance to chemicals and can be used in saltwater environments. A flange distributes pressure where the nut meets the material surface, eliminating the need for a separate washer. They may be mildly magnetic. Height includes the flange.
Product Mechanical Requirements:
| Item | Value |
| Grade | A4-80 |
| Stress under proof load | 800min. Mpa |

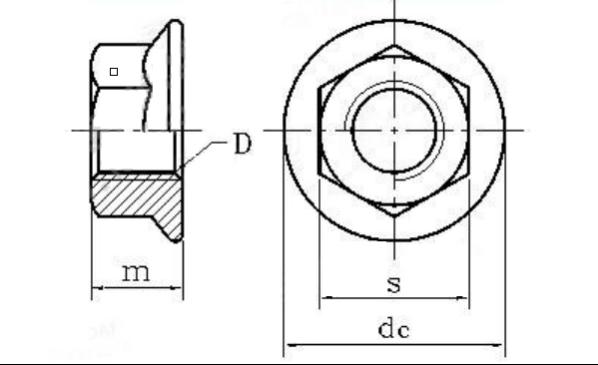

Product Drawing:
| Hexagon nuts with flange | ||||||
| DIN 6923-1983 | ||||||
 |
||||||
| d(mm) | p(mm) | dc(mm) | m(mm) | s(mm) | ||
| max | min | max | min | max | ||
| M5 | 0.8 | 11.8 | 4.7 | 5 | 7.78 | 8 |
| M6 | 1 | 14.2 | 5.7 | 6 | 9.78 | 10 |
| M8 | 1/1.25 | 17.9 | 7.6 | 8 | 12.73 | 13 |
| M10 | 1/1.25/1.5 | 21.8 | 9.6 | 10 | 14.73 | 15 |
| M12 | 1.25/1.5/1.75 | 26 | 11.6 | 12 | 17.73 | 18 |
| M14 | 1.5/2 | 29.9 | 13.3 | 14 | 20.67 | 21 |
| M16 | 1.5/2 | 34.5 | 15.3 | 16 | 23.67 | 24 |
| M20 | 1.5/2.5 | 42.8 | 18.9 | 20 | 29.67 | 30 |
Product Features:
Stainless steel is steel combined with alloying elements,principally chromium,to enhance corrosion resistance and impart other desired properties depending upon the alloying elements in use and their proportions.
Many stainless steel fasteners are non-magnetic or less magnetic than regular steel fasteners.
Testing Equipment:
Packing:
