Mild Steel Phillips Flat Head Stainless Steel Machine Screws Dacromet
Product Description:
Mild Steel Dacromet Finish Phillips Drive Flat Head Machine Screw
Mild Steel Dacromet Finish Phillips Drive Flat Head Machine Screw Made In China.
Machine Screws have a uniform diameter the entire length of the shaft as opposed to tapered screws which have a pointed tip.
We offer low carbon steel, medium carbon steel, alloy steel, stainless steel and brass, aluminum alloy Washers.
Machine Screws can be heated, oxidized black, galvanized, hot bucket galvanized, black zinc, copper plating, nickel plating, chromium plating, Dakota and other treatments to meet various corrosion resistance or strength requirements.
Please state this requirement in your inquiry.
| Products name | Mild Steel Dacromet Finish Phillips Drive Flat Head Machine Screw |
| Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB |
| Material | Carbon Steel:Q235,#45,65Mn,#70;Stainless Steel:SS304, SS316,SS316L |
| Steel Grade: Class 4,Class 8,Class 10 and Class 12 | |
| Finishing | Black Oxide,HDG(Hot Dip Galvanized),,Yellow Zinc Plated,Blue White Zinc Plated,Dacromet,PTFE |
| Related Products | Hex nut,flat washer and spring washers. |
| Application |
Machine screw are used to fasten machine components,appliances and more. Screws are angled under the head to sit flush within countersunk holes. |
| Stock Products | Machine screw in stock with Black Oxide,Zinc Plated,Yellow Zinc and HDG |
| Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd | |
| Focus On Supplying High Quality Fasteners. | |

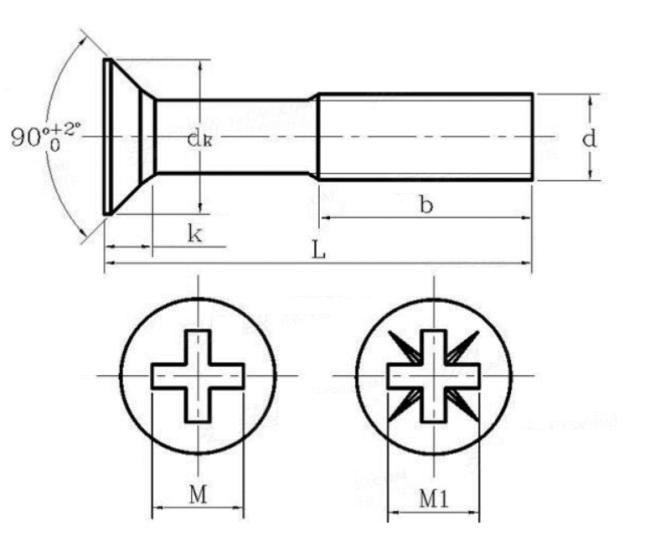

Drawing:
| Cross Recessed Countersunk Head Screws | ||||||||
| ISO 7046 & GB/T 819 | ||||||||
 |
||||||||
| d(mm) | P(mm) | b(mm) | dk(mm) | k(mm) | Size | M | M1 | |
| min | min | max | max | |||||
| M1.6 | 0.35 | 25 | 2.7 | 3 | 1 | 0 | 1.6 | 1.8 |
| M2 | 0.4 | 25 | 3.5 | 3.8 | 1.2 | 1.9 | 2 | |
| M2.5 | 0.45 | 25 | 4.4 | 4.7 | 1.5 | 1 | 2.9 | 3 |
| M3 | 0.5 | 25 | 5.2 | 5.5 | 1.65 | 3.2 | 3.2 | |
| M4 | 0.7 | 39 | 8 | 8.4 | 2.7 | 2 | 4.6 | 4.6 |
| M5 | 0.8 | 38 | 8.9 | 9.3 | 2.7 | 5.2 | 5.1 | |
| M6 | 1 | 38 | 10.9 | 11.3 | 3.3 | 3 | 6.8 | 6.8 |
| M8 | 1.25 | 38 | 15.4 | 15.8 | 4.65 | 4 | 8.9 | 9 |
| M10 | 1.5 | 38 | 17.8 | 18.3 | 5 | 10 | 10 | |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and OEM are available.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
