ISO 4017 Full Thread Hex Bolt Coarse Wind Energy Fasteners Dacromet
Product Description:
Wind Energy Fasteners Hex Bolts Full Threaded ISO4017 Standard Dacromet 1000hours Spray Test
Wind Energy Fasteners Hex Bolts Full Threaded ISO4017 Standard Dacromet 1000hours Spray Test Made In China.
This International Standard specifies the characteristics of hexagon head screws with threads from M1.6 up to M64.
| Products name | Wind Energy Fasteners Hex Bolts Full Threaded ISO4017 Standard Dacromet 1000hours Spray Test |
| Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB |
| Material | Carbon Steel,Alloy Steel;Stainless Steel:SS304, SS316,SS316L |
| Steel Grade: 8.8,10.9,12.9,Grade2,5 and 8,Class A2-70,A4-70,A4-80 | |
| Finishing | Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet |
| Related Products | Hex Nuts,Flat Washer,and Spring Washer |
| Applications | Nuclear power,Wind tower,Automotive industry,Railway,Electronic,Construction industry. |
| Stock Products | ISO4017 Hex bolt most of size in stock. |
| Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd | |
| Focus On Supplying High Quality Fasteners. | |

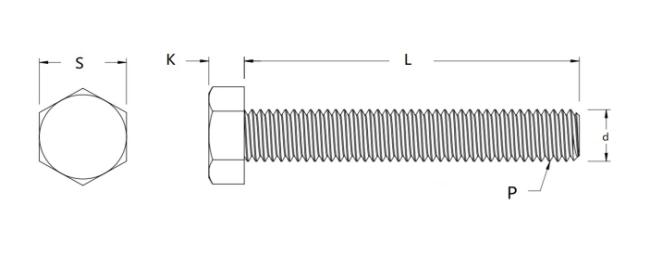

Drawing:
| Hexagon head bolts-Full thread--Product grades A and B | ||||||||
| ISO4017 & GB/T5783 | ||||||||
 |
||||||||
| d | P(mm) | k(mm) | s(mm) | |||||
| A | B | min | max | |||||
| min | max | min | max | A | B | |||
| M1.6 | 0.35 | 0.975 | 1.225 | 0.9 | 1.3 | 3.02 | 2.9 | 3.2 |
| M2 | 0.4 | 1.275 | 1.525 | 1.2 | 1.6 | 3.82 | 3.7 | 4 |
| M2.5 | 0.45 | 1.575 | 1.825 | 1.5 | 1.9 | 4.82 | 4.7 | 5 |
| M3 | 0.5 | 1.875 | 2.125 | 1.8 | 2.2 | 5.32 | 5.2 | 5.5 |
| M3.5 | 0.6 | 2.275 | 2.525 | 2.2 | 2.6 | 5.82 | 5.7 | 6 |
| M4 | 0.7 | 2.675 | 2.925 | 2.6 | 3 | 6.78 | 6.64 | 7 |
| M5 | 0.8 | 3.35 | 3.65 | 3.26 | 3.74 | 7.78 | 7.64 | 8 |
| M6 | 1 | 3.85 | 4.15 | 3.76 | 4.24 | 9.78 | 9.64 | 10 |
| M8 | 1.25 | 5.15 | 5.45 | 5.06 | 5.54 | 12.73 | 12.57 | 13 |
| M10 | 1.5 | 6.22 | 6.58 | 6.11 | 6.69 | 15.73 | 15.57 | 16 |
| M12 | 1.75 | 7.32 | 7.68 | 7.21 | 7.79 | 17.73 | 17.57 | 18 |
| M14 | 2 | 8.62 | 8.98 | 8.51 | 9.09 | 20.67 | 20.16 | 21 |
| M16 | 2 | 9.82 | 10.18 | 9.71 | 10.29 | 23.67 | 23.16 | 24 |
| M18 | 2.5 | 11.29 | 11.72 | 11.15 | 11.85 | 26.67 | 26.16 | 27 |
| M20 | 2.5 | 12.29 | 12.72 | 12.15 | 12.85 | 29.67 | 29.16 | 30 |
| M22 | 2.5 | 13.79 | 14.22 | 13.65 | 14.35 | 33.38 | 33 | 34 |
| M24 | 3 | 14.79 | 15.22 | 14.65 | 15.35 | 35.38 | 35 | 36 |
| M27 | 3 | / | / | 16.65 | 17.35 | / | 40 | 41 |
| M30 | 3.5 | / | / | 18.28 | 19.12 | / | 45 | 46 |
| M33 | 3.5 | / | / | 20.58 | 21.42 | / | 49 | 50 |
| M36 | 4 | / | / | 22.08 | 22.92 | / | 53.8 | 55 |
| M39 | 4 | / | / | 24.58 | 25.42 | / | 58.8 | 60 |
| M42 | 4.5 | / | / | 25.58 | 26.42 | / | 63.1 | 65 |
| M45 | 4.5 | / | / | 27.58 | 28.42 | / | 68.1 | 70 |
| M48 | 5 | / | / | 29.58 | 30.42 | / | 73.1 | 75 |
| M52 | 5 | / | / | 32.5 | 33.5 | / | 78.1 | 80 |
| M56 | 5.5 | / | / | 34.5 | 35.5 | / | 82.8 | 85 |
| M60 | 5.5 | / | / | 37.5 | 38.5 | / | 87.8 | 90 |
| M64 | 6 | / | / | 39.5 | 40.5 | / | 92.8 | 95 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and OEM are available.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
