A4 80 Wind Energy Fasteners Metric Hex Lock Nuts Nylon Insert ISO 7040
Product Description:
Wind Energy Fasteners Grade A4-80 Metric Nylon Insert Full Hex Lock Nut ISO7040
Wind Energy Fasteners Grade A4-80 Metric Nylon Insert Full Hex Lock Nut ISO7040 Made In China.
Nylon insert locknuts are produced by forming and tapping nuts that include a tubular feature on top that receives a nylon ring.
The tubular top is crimped to capture and hold the ring from spinning while the mating part self threads into the nylon during assembly.
As compared to stainless steel grade 304,grade 316 provides better overall corrosion resistant properties.This holds true particularly as grade 316 stainless steel has a higher resistance to both pitting as well as crevice corrosion in chloride environments.
| Products name | Wind Energy Fasteners Grade A4-80 Metric Nylon Insert Full Hex Lock Nut ISO7040 |
| Standard: | DIN,ASTM/ANSI JIS EN ISO,AS,GB |
| Material | Carbon Steel,Alloy Steel;Stainless Steel:SS304, SS316,SS316L |
| Steel Grade: 8,10,12,Grade2,5 and 8,Class A2-70,A4-70,A4-80 | |
| Finishing | Black Oxide,HDG(Hot Dip Galvanized),Zinc Plated,Dacromet |
| Related Products | Hex Bolts,Flat Washer,and Spring Washer |
| Applications | The full hex ISO 7040 lock nut is commonly used in many general purpose applications.Produced in high volumes,the smaller diameter products are relatively inexpensive.As compared to all metal lock nuts,nylon insert locknuts are less damaging to mating threads,but have heat limitations and the nylon develops memory and prevailing torque erodes. |
| Stock Products | ISO7040 Lock nut most of sizes are in stock. |
| Get Free Samples for standard fastener from Jiangyin XiangGu Hardware Products Co.,Ltd | |
| Focus On Supplying High Quality Fasteners. | |

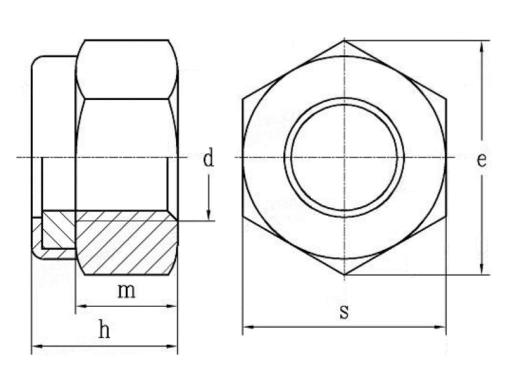

Drawing:
| Prevailing torque type hexagon nuts(with non-metallic insert),style 1 | |||||
| ISO7040 & GB/T 889.1-2000 | |||||
 |
|||||
| d(mm) | P(mm) | h(mm) | s(mm) | ||
| min | max | min | max | ||
| M3 | 0.5 | 4.02 | 4.5 | 5.32 | 5.5 |
| M4 | 0.7 | 5.52 | 6 | 6.78 | 7 |
| M5 | 0.8 | 6.22 | 6.8 | 7.78 | 8 |
| M6 | 1 | 7.42 | 8 | 9.78 | 10 |
| M8 | 1.25 | 8.92 | 9.5 | 12.73 | 13 |
| M10 | 1.5 | 11.2 | 11.9 | 15.73 | 16 |
| M12 | 1.75 | 14.2 | 14.9 | 17.73 | 18 |
| M14 | 2 | 15.9 | 17 | 20.67 | 21 |
| M16 | 2 | 17.8 | 19.1 | 23.67 | 24 |
| M20 | 2.5 | 20.7 | 22.8 | 29.16 | 30 |
| M24 | 3 | 25 | 27.1 | 35 | 36 |
| M30 | 3.5 | 30.1 | 32.6 | 45 | 46 |
| M36 | 4 | 36.4 | 38.9 | 53.8 | 55 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and OEM are available.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
