Product Description:

Wind Energy Fasteners ISO7093 Oversize Flat Washer Stainless Steel A4 Fender Washer

Wind Energy Fasteners ISO7093 Oversize Flat Washer Stainless Steel A4 Fender Washer Made In China.

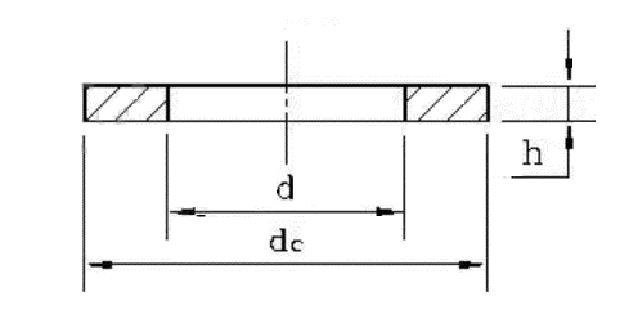

Drawing:


Large plain washers -product grade A
ISO7093 & DIN9021-1990
d	d(mm)		dc(mm)		h(mm)
	min	max	min	max	Nom	min	max
2.5	2.7	2.84	7.64	8	0.8	0.7	0.9
3	3.2	3.38	8.64	9	0.8	0.7	0.9
3.5	3.7	3.88	10.57	11	0.8	0.7	0.9
4	4.3	4.48	11.57	12	1	0.9	1.1
5	5.3	5.48	14.57	15	1.2	1	1.4
6	6.4	6.62	17.57	18	1.6	1.4	1.8
7	7.4	7.62	21.48	22	2	1.8	2.2
8	8.4	8.62	23.48	24	2	1.8	2.2
10	10.5	10.77	29.48	30	2.5	2.3	2.7
12	13	13.27	36.38	37	3	2.7	3.3
14	15	15.27	43.38	44	3	2.7	3.3
16	17	17.27	49.38	50	3	2.7	3.3
18	20	20.52	54.1	56	4	3.4	4.6
20	22	22.52	58.1	60	4	3.4	4.6
24	26	26.84	70.1	72	5	4	6
30	33	34	89.8	92	6	5	7
36	39	40	107.8	110	8	6.8	9.2


FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and OEM are available.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock,or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment or L/C.
If you have another question, please feel free to contact us.
