Description:

Automotive Fasteners M8 DIN7500PE Triangular Thread Torx Pan Head Screw Thread Forming Screw

Automotive Fasteners M8 DIN7500PE Triangular Thread Torx Pan Head Screw Thread Forming Screw Made In China.

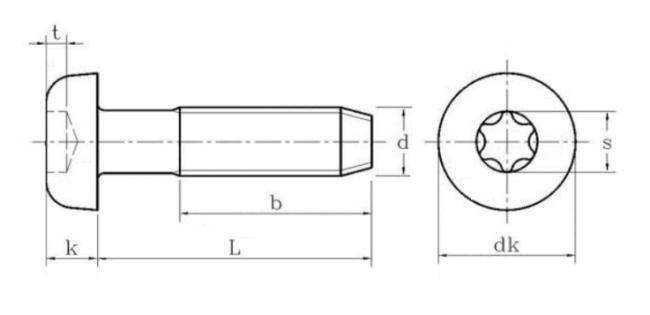

Drawing:

Hexalobular Socket Pan Head Thread Rolling Screws
DIN 7500PE-2009
d(mm)	P(mm)	dk(mm)		k(mm)		t(mm)		槽号
		min	max	min	max	min	max
M2	0.4	3.7	4	1.46	1.6	0.63	0.77	T6
M2.5	0.45	4.7	5	1.96	2.1	0.91	1.04	T8
M3	0.5	5.3	5.6	2.26	2.4	1.01	1.27	T10
M3.5	0.6	6.64	7	2.46	2.6	1.07	1.33	T15
M4	0.7	7.64	8	2.92	3.1	1.27	1.66	T20
M5	0.8	9.14	9.5	3.52	3.7	1.52	1.91	T25
M6	1	11.57	12	4.3	4.6	2.02	2.42	T30
M8	1.25	15.57	16	5.7	6	2.79	3.18	T45
M10	1.5	19.48	20	7.14	7.5	3.62	4.02	T50

FAQ:
Q1. Can I have a sample order for Hex flange bolt?
A:Yes,we welcome sample order to test and check quality.

Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production


Q3. Do you have any MOQ limit for hex flange bolt order?
A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT for sample order,and it takes about 3-7days
Ship by Sea from Shanghai Port,and it takes 3-30days to arrive.

Q5. How to proceed an order for hex flange bolt?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
