Description:

Solar Panel Fasteners DIN912 SS304 Grade A2-70 Hex Socket Head Cap Screw

Solar Panel Fasteners DIN912 SS304 Grade A2-70 Hex Socket Head Cap Screw Made In China.

Sizes from M1.6 to M48 as standard.

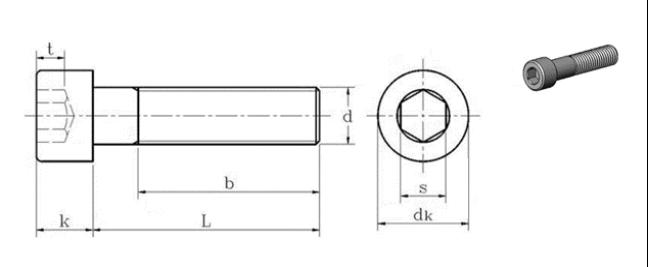

Product Drawing:

Hexagon socket head cap screws
DIN 912-1983
d(mm)	P(mm)	b(mm)	dk(mm)		k(mm)		s(mm)		t(mm)
			min	max	min	max	min	max	min
M1.4	0.3	14	2.46	2.74	1.26	1.4	1.32	1.36	0.6
M1.6	0.35	15	2.86	3.14	1.46	1.6	1.52	1.56	0.7
M2	0.4	16	3.62	3.98	1.86	2	1.52	1.56	1
M2.5	0.45	17	4.32	4.68	2.36	2.5	2.02	2.06	1.1
M3	0.5	18	5.32	5.68	2.86	3	2.52	2.58	1.3
M4	0.7	20	6.78	7.22	3.82	4	3.02	3.08	2
M5	0.8	22	8.28	8.72	4.82	5	4.02	4.095	2.5
M6	1	24	9.78	10.22	5.7	6	5.02	5.14	3
M8	1.25/1	28	12.73	13.27	7.64	8	6.02	6.14	4
M10	1.5/1.25/1	32	15.73	16.27	9.64	10	8.025	8.175	5
M12	1.75/1.5/1.25	36	17.73	18.27	11.57	12	10.025	10.18	6
M14	2/1.5	40	20.67	21.33	13.57	14	12.032	12.21	7
M16	2/1.5	44	23.67	24.33	15.57	16	14.032	14.21	8
M18	2.5/2/1.5	48	26.67	27.33	17.57	18	14.032	14.21	9
M20	2.5/2/1.5	52	29.67	30.33	19.48	20	17.05	17.23	10
M22	2.5/2/1.5	56	32.61	33.39	21.48	22	17.05	17.23	11
M24	3/2	60	35.61	36.39	23.48	24	19.065	19.28	12
M27	3/2	66	39.61	40.39	26.48	27	19.065	19.28	13.5
M30	3.5/2	72	44.61	45.39	29.48	30	22.065	22.28	15.5
M33	3.5/2	78	49.61	50.39	32.38	33	24.065	24.28	18
M36	4/3	84	53.54	54.46	35.38	36	27.065	27.28	19
M42	4.5/3	96	62.54	63.46	41.38	42	32.08	32.33	24
M48	5/3	108	71.54	72.46	47.38	48	36.08	36.33	28
M56	5.5/4	124	83.46	84.54	56.26	57	41.08	41.33	34
M64	6/4	140	95.46	96.54	63.26	64	46.08	46.33	38
M72*4	6/4	156	107.5	108.5	71.26	72	55.1	55.4	43
M80*4	6/4	172	119.5	120.5	79.26	80	65.1	65.4	48
M90*4	6/4	192	134.4	135.6	89.13	90	75.1	75.4	54
M100*4	6/4	212	149.4	150.6	99.13	100	85.12	85.47	60

FAQ:
Q1. Can I have a sample order for Hex flange bolt?
A:Yes,we welcome sample order to test and check quality.

Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production


Q3. Do you have any MOQ limit for hex flange bolt order?
A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT for sample order,and it takes about 3-7days
Ship by Sea from Shanghai Port,and it takes 3-30days to arrive.

Q5. How to proceed an order for hex flange bolt?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
