Chemiluminescence Immunoassay POCT Analyzer ALP-AMPPD
ALP-AMPPD Chemiluminescence Immunoassay POCT analyzer CLIA-mate
Feature
Advanced magnetic particle-based chemiluminescence technology
Stable ALP-AMPPD reaction system
Compact design of analyzer of point-of-care use
Magnetic nanoparticles, make the reaction more complete
All-in-one design of reagent cartridges, lower carryover rate
Easy one-click operation and free maintenance
Whole blood for cardiac and inflammation parameters, results within 17minutes
Reagent information loading by external barcode scanner automatically
Product parameters:
| Principle | ALP-AMDDP chemiluminescence immunoassay |
| Sample type | Whole blood/Serum/Plasma |
| Throughput | 30 T/hour |
| Test mode | Batch mode |
| Display | 10.1-inch colour touch screen |
| Calibration frequency | 100 days |
| Consumable | Disposable tips |
| Data storage | ≥100,000 |
| Communication port | USB/RS232/LAN/WIFI, available for LIS |
| Printer | Built-in thermal printer |
| Dimensions | 575x325x605mm |
| Weight | 40 kg |
Introduction
The Chemiluminescence Immunoassay Analyzer CLIA-mate uses advanced magnetic separation technology with ALP-AMPPD principle, for the diagnosis of common human diseases. Based on specific antigen-antibody reaction, the amount of light emission can be captured and automaticly calculated. For certain analyte, including serum, plasma and whole blood, is able to measure the concentration of various biological markers including tumor markers,inflammation markers, cardiac markers and other markers with excellent accuracy and easy operation.
About Clia

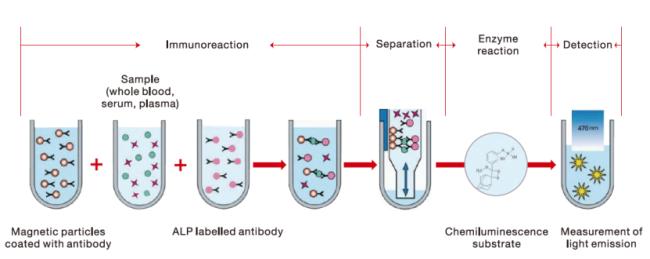

Test Principle
Immunoreaction→Separation→Enzyme reaction→Detection
