120 Test / Hour Fluorescence Immunoassay Analyzer 12 Channels
Sampling
After adding the sample, the reaction time is 5-10mins
Card insertion
Reagent card insertion
Test
Read test items
When the test is completed, the system automatically discards the card
Result
Built-in thermal sensitive printer to print test results

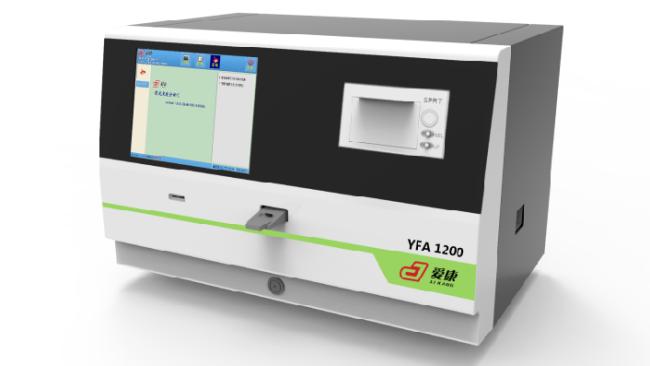

Lab&Hospital Immunofluorescence (FIA) Platform-YFA1200
product parameters:
| Measurement principle | Fluorescence immunochromatography |
| Sample type | Whole blood, serum, plasma, fingertip blood |
| Throughput | 120 test/hour |
| Incubation position | 12 channels |
| Test mode | On-demand test, random combination of test items in the same run |
| Display | 8’’ color touch screen |
| Communication port | USB/RS232/LAN, available for LIS |
| Printer | Built-in thermal printer or external printer |
| Dimensions | 470×320×320 mm |
| Weight | 15 kg |
Product description
YFA1200 is a portable point-of-care testing system with fluorescence immunochromatographic (FIA) principle,and it is widely used in public health fields such as clinical testing, health management food safety monitoring and so on. The communication port of YFA 1200 concludes USB/RS232/LAN, available for LIS,which is convenient to be placed in standard laboratories, large hospitals and primary level medical institutions.
Features:
Reliable:
- Use Fluorescence Immunoassay technology with high sensitivity and accuracy
- Support up to 12 tests at the same time
Fast:
- The result can be get in 3~15 min
- 24 h/day standby
Convenient:
- Compact design of the analyzer for point-of-care testing
- Reagent information is scanned by the sacnner automaticly
Easy operation
Test menu:
The test menu are shown as the picture below:
|
Cardiac Markers cTnI NT-proBNP D-Dimer CK-MB* Myo* cTnI/NT-proBNP* cTnI/CK-MB/Myo*
|
Inflammation PCT CRP SAA HBP* CRP/SAA* PCT/IL6* |
Kidney Function CysC β2-MG
|
|
Fertility AMH* β-HCG* PAPP-A*
|
Bone Metabolism 25-OH-VD* PTH* |
