12 Channels Fluorescence Immunoassay Analyzer
Product description
YFA1200 is a portable point-of-care testing system with fluorescence immunochromatographic principle,and it is widely used in public health fields such as clinical testing, health management and so on. The communication port of YFA 1200 concludes USB/RS232/LAN, available for LIS,which is convenient to be placed in standard laboratories, large hospitals and primary level medical institutions.

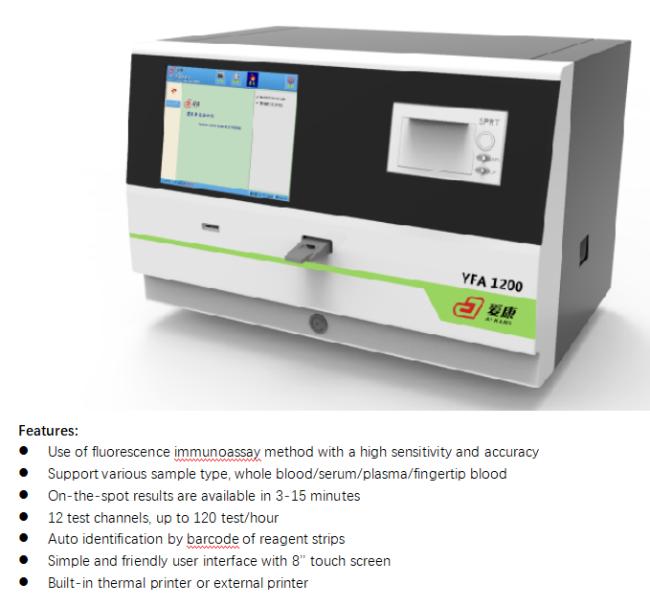

12 test channels Lab Immunofluorescence (FIA) analyzer-YFA1200
product parameters:
| Measurement principle | Fluorescence immunochromatography |
| Sample type | Whole blood, serum, plasma, fingertip blood |
| Throughput | 120 test/hour |
| Incubation position | 12 channels |
| Test mode | On-demand test, random combination of test items in the same run |
| Display | 8’’ color screen |
| Communication port | USB/RS232/LAN, available for LIS |
| Printer | Built-in thermal printer or external printer |
| Dimensions | 470×320×320 mm |
| Weight | 15 kg |
Features:

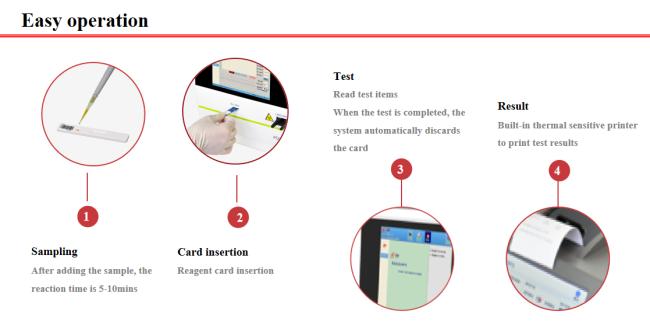

Easy operation
Sampling
After adding the sample, the reaction time is 5-10mins
Card insertion
Reagent card insertion
Test
Read test items
When the test is completed, the system automatically discards the card
Result
Built-in thermal sensitive printer to print test results
Test menu:
|
Cardiac Markers cTnI NT-proBNP D-Dimer CK-MB* Myo* cTnI/NT-proBNP* cTnI/CK-MB/Myo*
|
Inflammation PCT CRP SAA HBP* CRP/SAA* PCT/IL6* |
Kidney Function CysC β2-MG
|
|
Fertility AMH* β-HCG* PAPP-A*
|
Bone Metabolism 25-OH-VD* PTH* |
Company profile

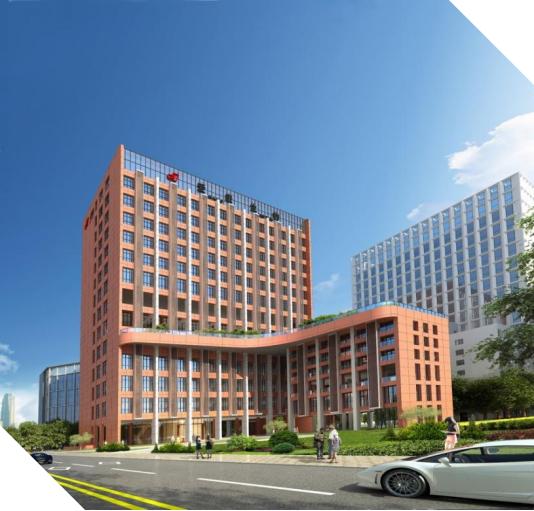

Aikang Group is a national high-tech enterprise specialized in R&D, production, sales and service of medical devices. Founded in 2003, Aikang is headquartered in Shenzhen China and has established three R&D and production bases with a total area of 30,000 sqm and hundreds of employees.
The mission of Aikang is not only for China, but also for the world,and the vision is to be the leader in global medical automation.

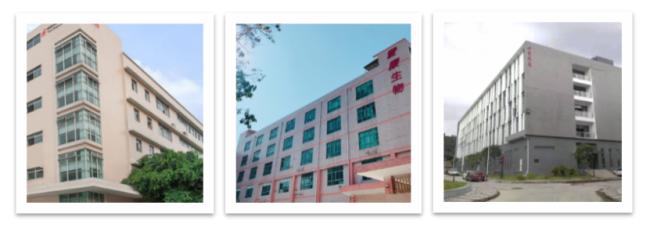

Aikang has three Manufacture Bases:
Aikang MedTech Co., Ltd. for medical automation solutions, Aikang Diagnostic Co., Ltd. for in-vitro diagnostic solutions and Aisikang MedTech Co., Ltd. for medical consumables.
