HDMI Extender With IR Pass-Back, Up to 1080P@60Hz - 395 ft (120m)
395Ft 120m HDMI Fiber Extender Over CAT5 CAT6 With Digital Signal
HDMI Over CAT5/CAT6 Extender with IR - 395 ft (120m)
► Aluminum shell, compact size and Slim design, more beautiful than iron shell, strong anti-interference, Wall-mounted type
► Uncompressed and zero latency
► Auto adjustment to match the cable length
► The highest resolutions supported is up to 1080P@60Hz
► Extend HDMI signal over single UTP CAT6/6a/7 cable up to 60m
► Support EDID pass-through
► Only one power adapter is needed for the TX, the RX can be powered by the TX over network cable.
Technical Indexes
| Parameter | Description | |
| Video | Standards | HDMI 1.3; HDCP 1.2 |
| Maximum pixel clock | 165MHz | |
| Maximum data rate | 6.75Gbps | |
| Resolution | Max: 1920X1080@60Hz | |
| Connector | HDMI-A | |
| Impedance | 100Ω | |
| IR | Interface | 3.5mm earphone seat |
| Signal direction | Unidirectional | |
| Signal type | Digital | |
| IR frequency | 38kHz | |
| Ethernet | Interface | RJ45(568B) |
| Transmission distance | UTP CAT5e---120m | |
| Other | Power supply | The power adapter: DC 5V |
| Power dissipation | MAX 4W | |
| Temperature | Operating: -5℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension | 100*97.5*17mm | |
| The warranty | 1 year free warranty | |
Overview

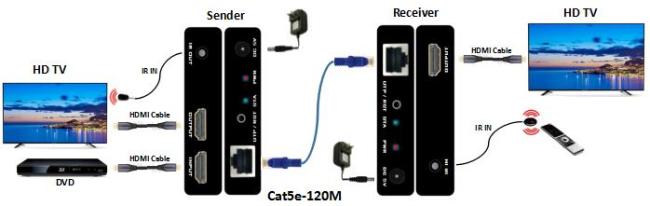

This HDMI Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension full HD 1080p@60Hz HDMI signal via CAT5e/6 UTP network cable, the transmission distance is up to 120meters; Support point to multi-point over Ethernet switch over IP. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device.
This product is perfect for AV transmission in applications of HD conference system, HD video shooting, HD multimedia education system, HD digital advertising and signage etc.
The device has a long transmission distance, low use cost, convenient installation and good compatibility, and it is a stable and efficient transmission method.
Ordering Information
| Part No | Description of product |
| LNK-HDE-120 | HDMI Over CAT5/CAT6 Extender with IR - 395 ft (120m), including 1 Transmitter & 1 Receiver, used by pairs |
