2km 60km 4K HDMI Fiber Optic Extender 30Hz 3D video Signal
2km 60km 4K HDMI Fiber Optic Extender 30Hz 3D Video Signal
4K HDMI Fiber Optic Extender
HDMI To Fiber Converter Advantages
l Transmits HDMI video signals up to 2km-60km over one fiber optic cable;
l Support video resolution up to 3840*2160@30Hz, 3D signal;
l Compliance with HMDI 1.4 and HDCP 1.2 standard;
l High compatibility, can auto-match source and display device;
l Built-in automatic adjustment system, make the image smooth, clear and stable;
l Built-in ESD protection system;
l Simple to install, plug and play;
Technical Indexes
| Parameter | Description | |
| Video | Standards | HDMI 1.4; HDCP 1.2 |
| Maximum pixel clock | 340MHz | |
| Maximum data rate | 10.2Gbps | |
| Resolution range | Up to 3840*2160@30Hz | |
| Connector | Female HDMI type A | |
| Impedance | 100Ω | |
| Optical fiber | Interface | SFP model – LC connector |
| Fiber type | Multi-mode / single-mode (optional) | |
| Wavelength |
Multi-mode 850nm / Single-mode 1310nm(optional) |
|
| Interface bandwidth | 10Gbps | |
| Transmission distance |
OM3 multi-mode fiber: maximum 300m, Single-mode fiber: standard 2km；maximum 60km |
|
| Other | Power supply | The power adapter: DC 5V/2A |
| Power dissipation | Max 4W | |
| Temperature | Operating: -5℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension | 104*89*28mm | |
Overview

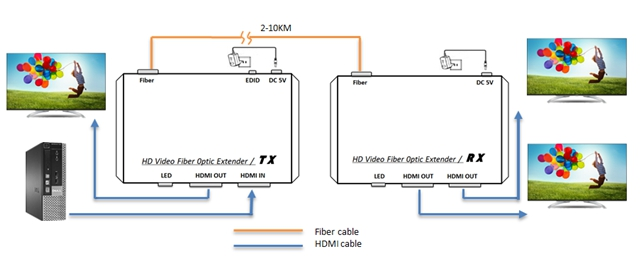

The LNK-H4K100 Fiber optic extender provides extension of HDMI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 3840*2160/30P. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Ordering Information
| Item | Description |
| LNK-H4K100 | 4K (3840*2160/30P) HDMI Fiber Extender, SFP Port (Excl. SFP), including 1 transmitter & 1 receiver, used by pairs |
